Series Vents Arc Smart

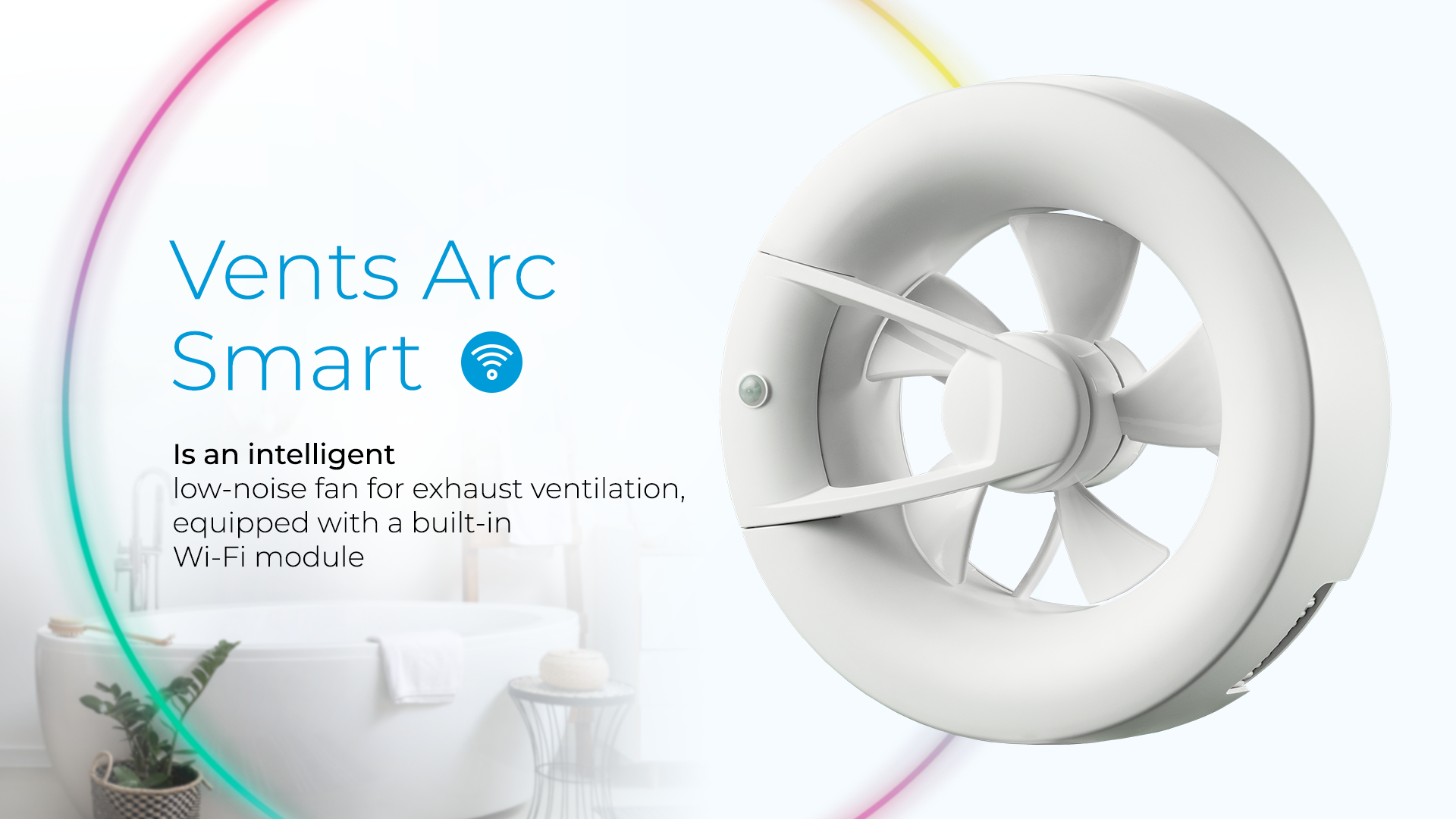

Intelligent axial fans for extract ventilation with built-in Wi-Fi modules

Motor type: DC
Control: Smartphone
Impeller type: Axial
Motion sensor

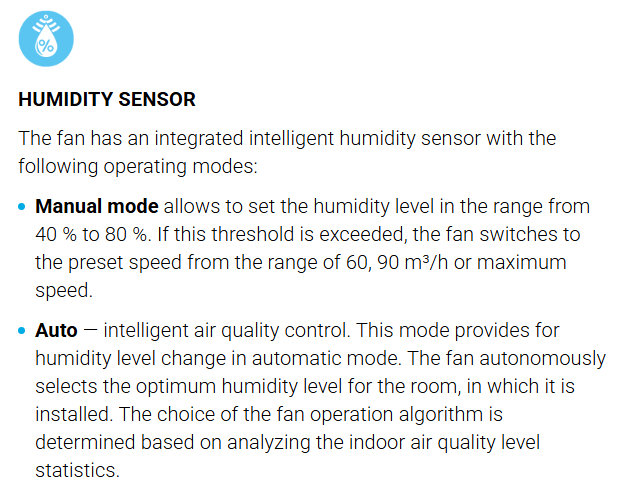

Humidity sensor: Built-in

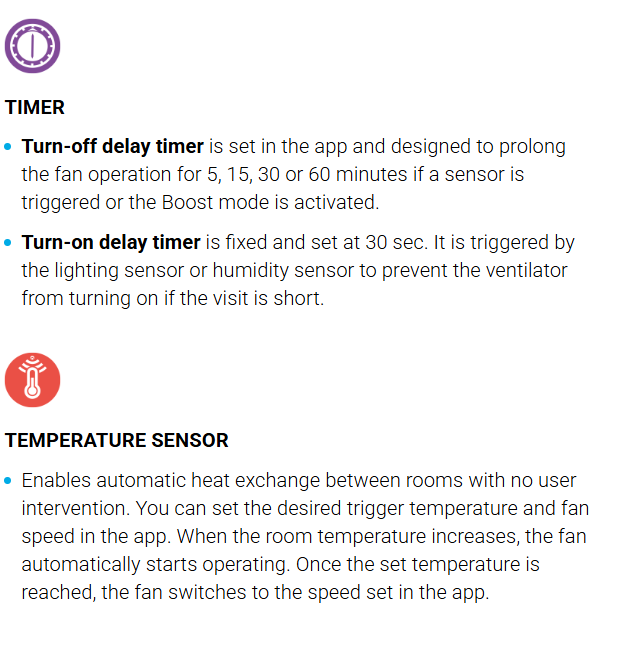

Timer: Turn off timer

Series Vents Arc Smart mô tả

Intelligent integrated control functions allow to adjust personal settings for the most balanced microclimate.
A wide range of operating modes is available for high comfort.
The unique impeller shape and modern DC motor ensure both extremely quiet operation and high performance.
The DC motor ensures a low energy consumption level of 2.7 W only, even at maximum speed.

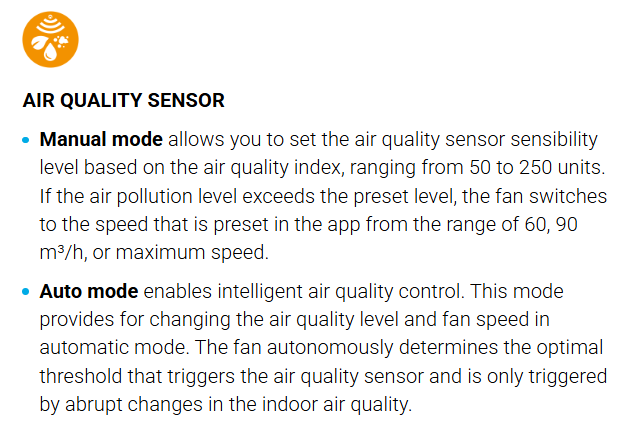

Air quality sensor available for comprehensive room pollution control.
Advanced fan control options available via your smartphone.
High water protection level allows for the fan to be installed over the shower.
Besides, the fan is connected to a DC 12 V power supply, which allows to install it even on yachts and motorhomes.

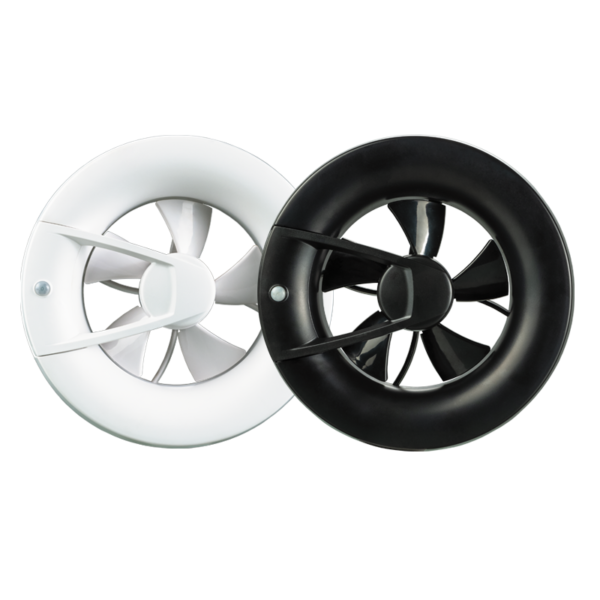

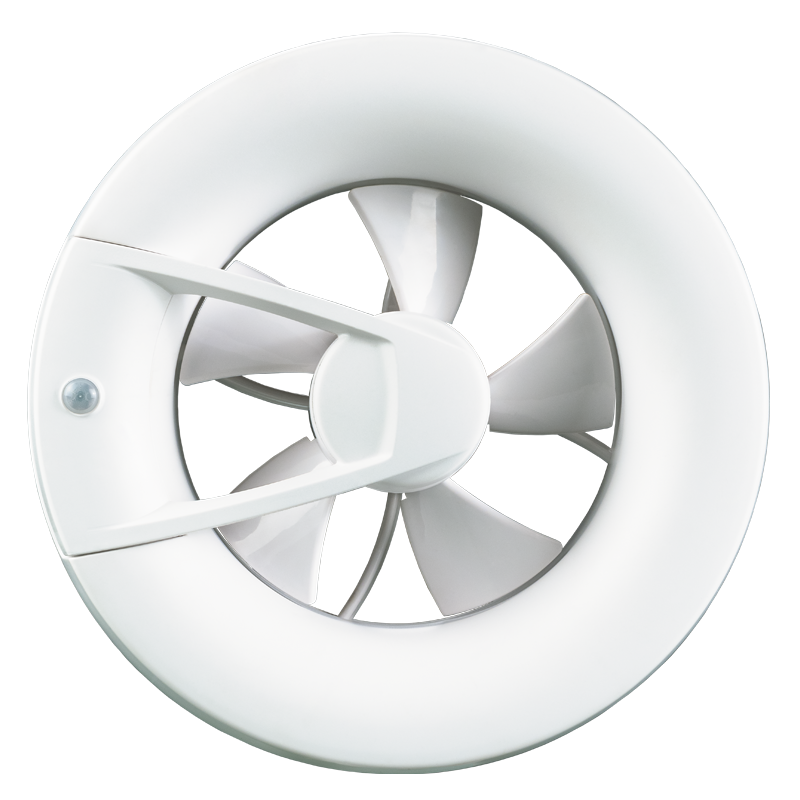

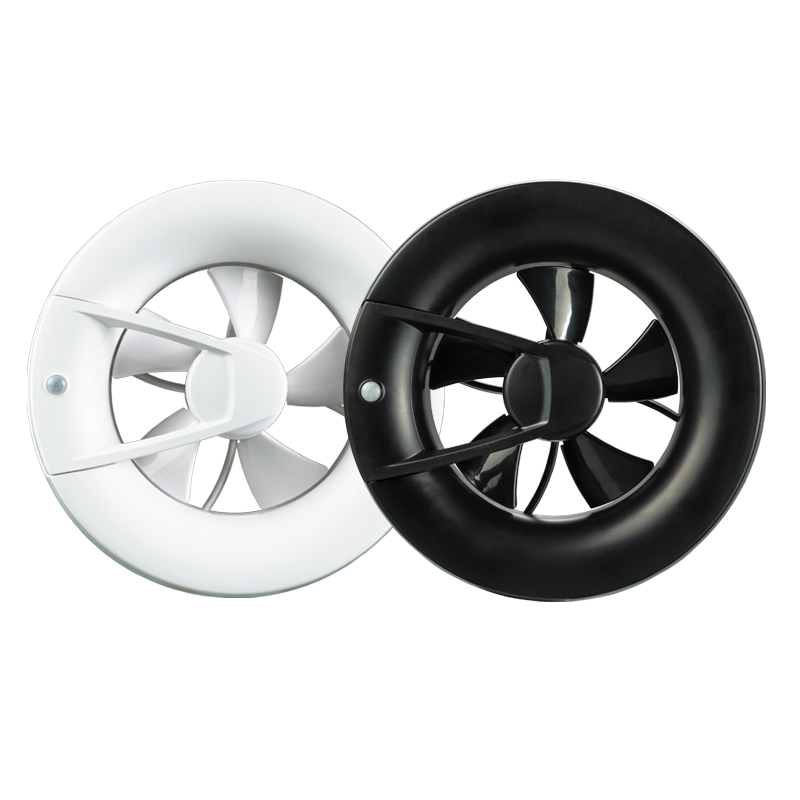

Black and white design colors available.

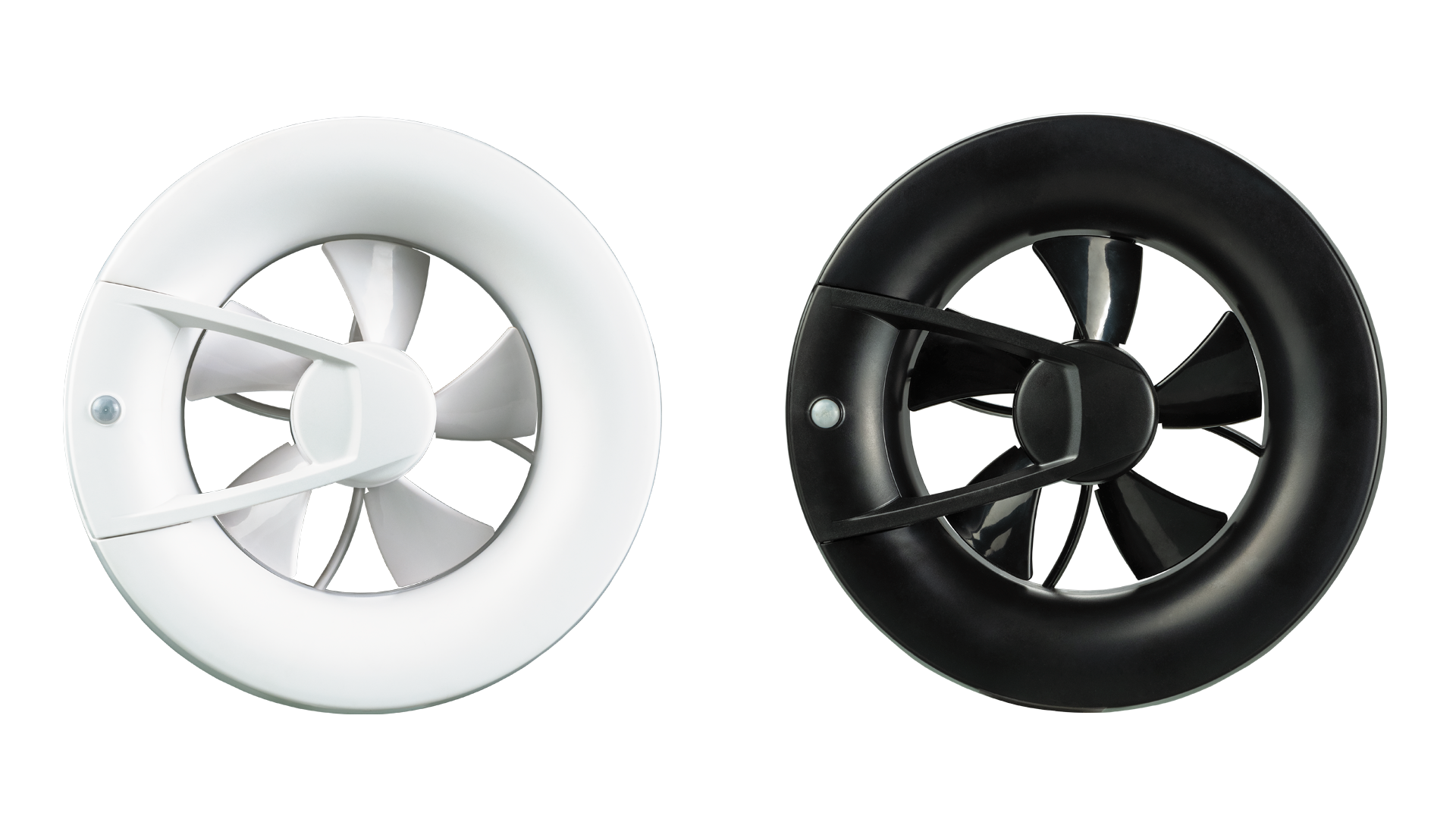

Series Vents Arc Smart mô tả 1

DESIGN

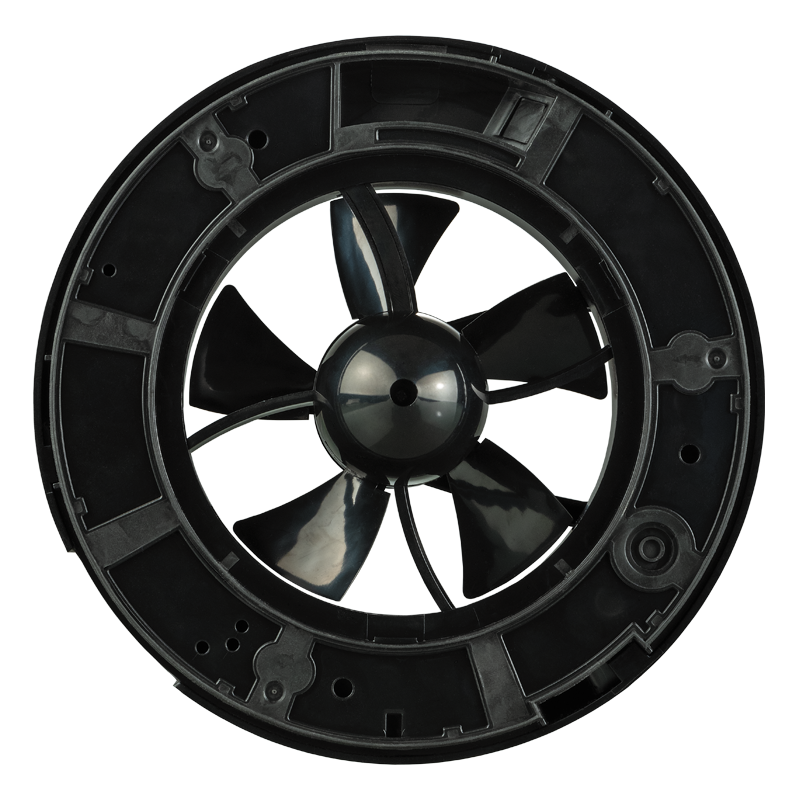

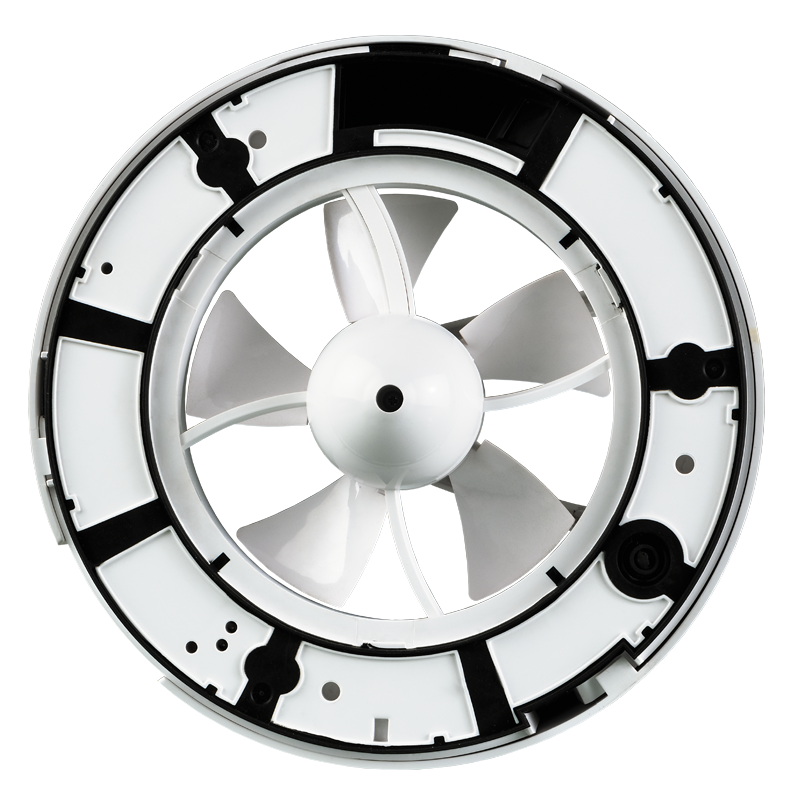

Specially designed motor on ball bearings and aerodynamically optimized impeller shape provide super silent operation at only 0.9 dBA, and high performance.
The bearings are maintenance-free and are filled with grease for the whole motor service life.
The motor is equipped with overheating protection.

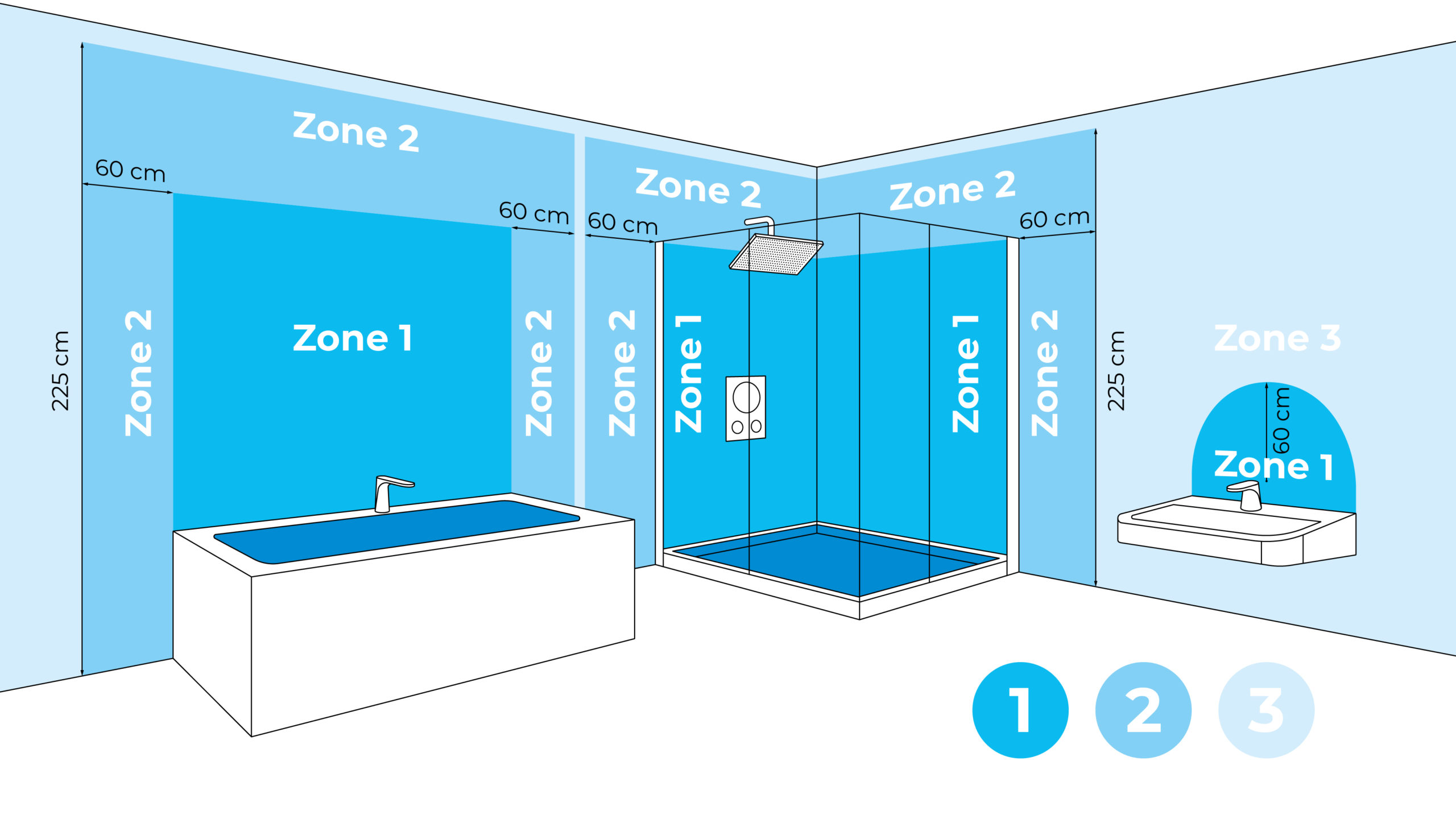

The fan has IP44 ingress protection rating and can be installed in Zone 1 of bathrooms.

DESIGN 1

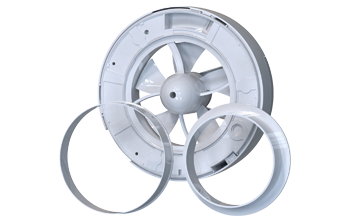

Due to replaceable spigots the fan is suitable

for mounting with Ø100 or Ø125 mm air ducts.

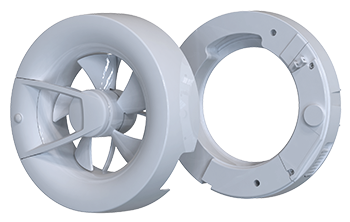

Ease of use: the motor unit and the impeller can be

easily removed with no special tools necessary.

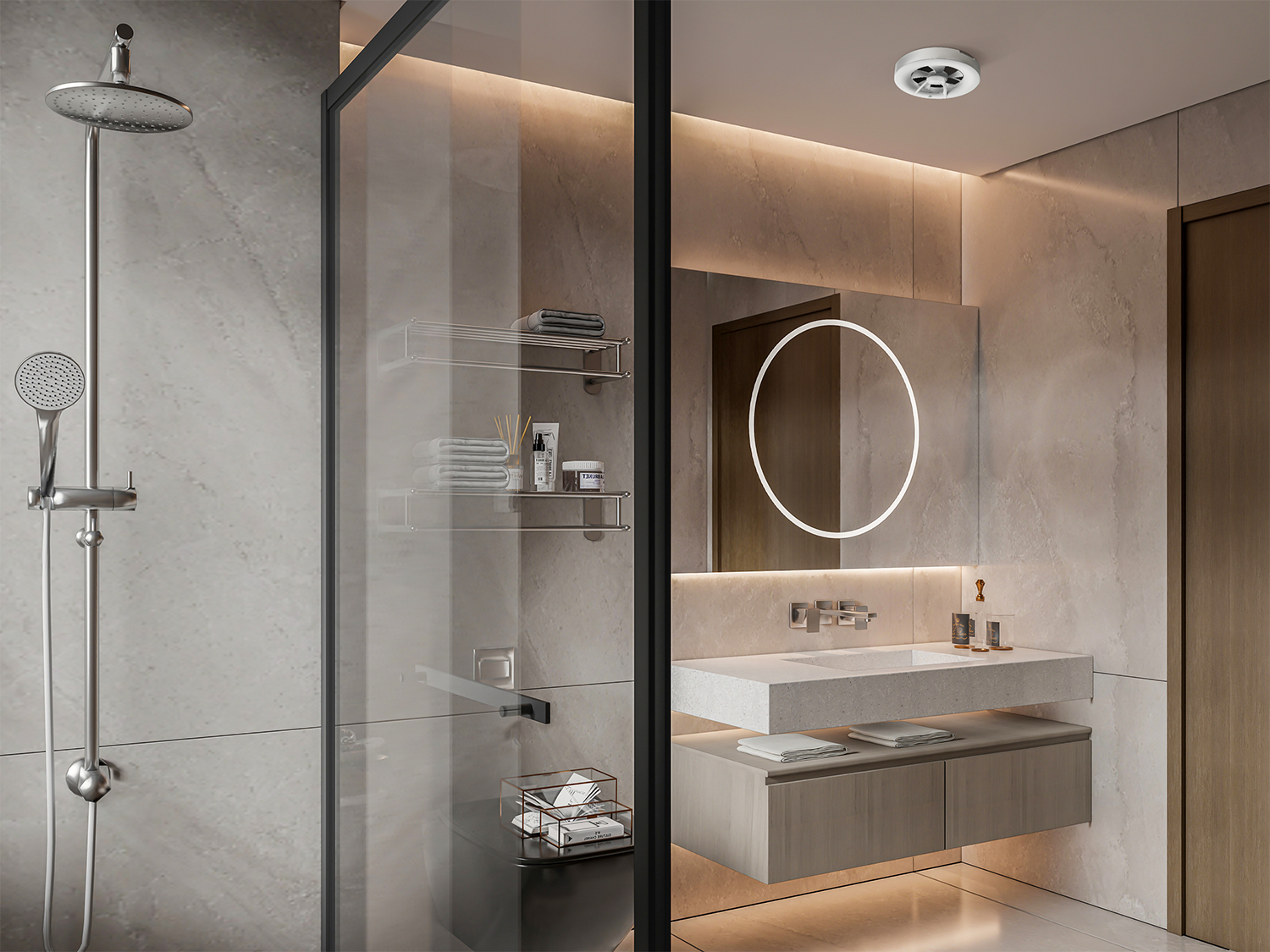

DESIGN 4

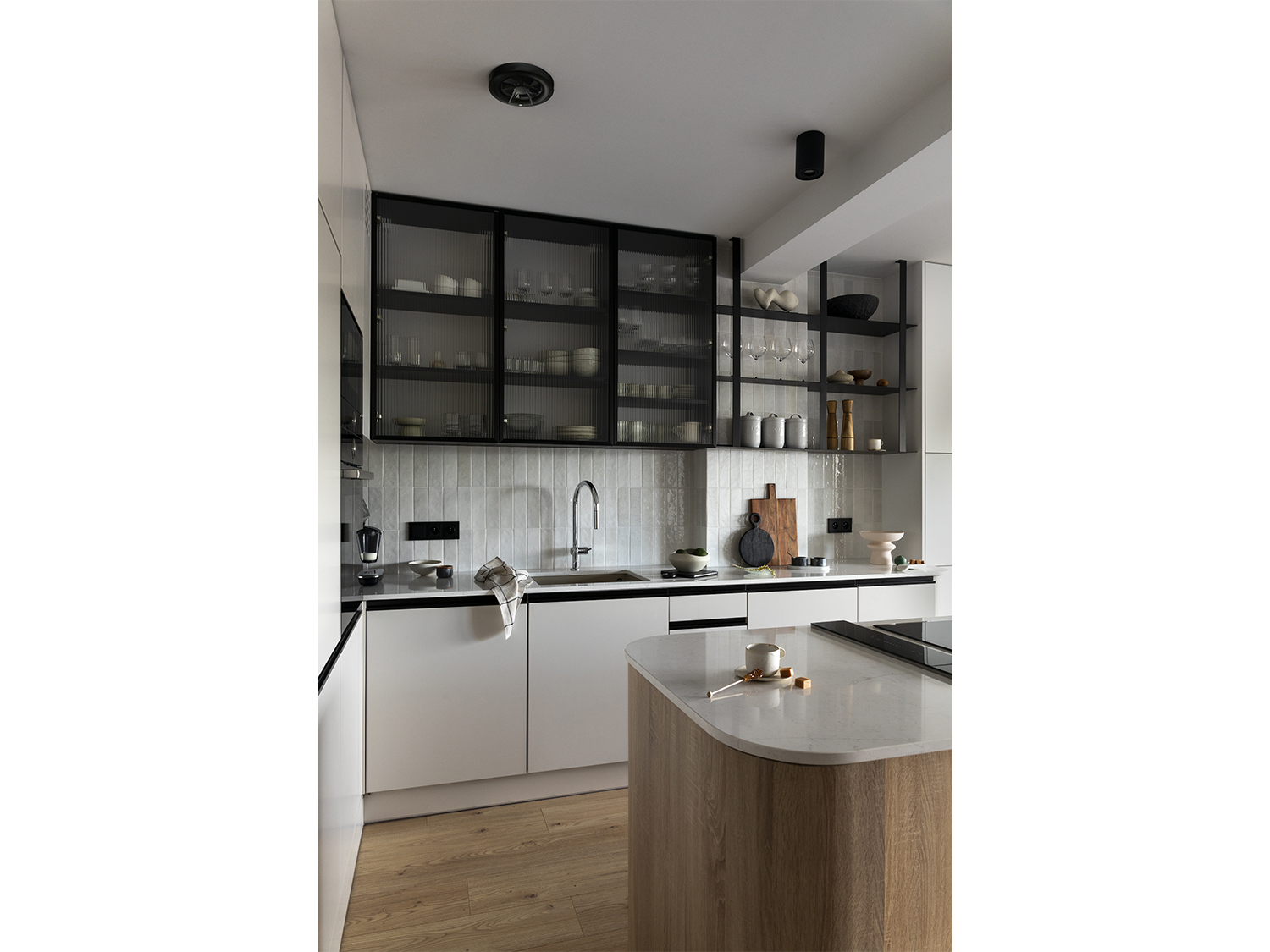

DESIGN 5

CONTROLLING THE VENTS ARC SMART FAN

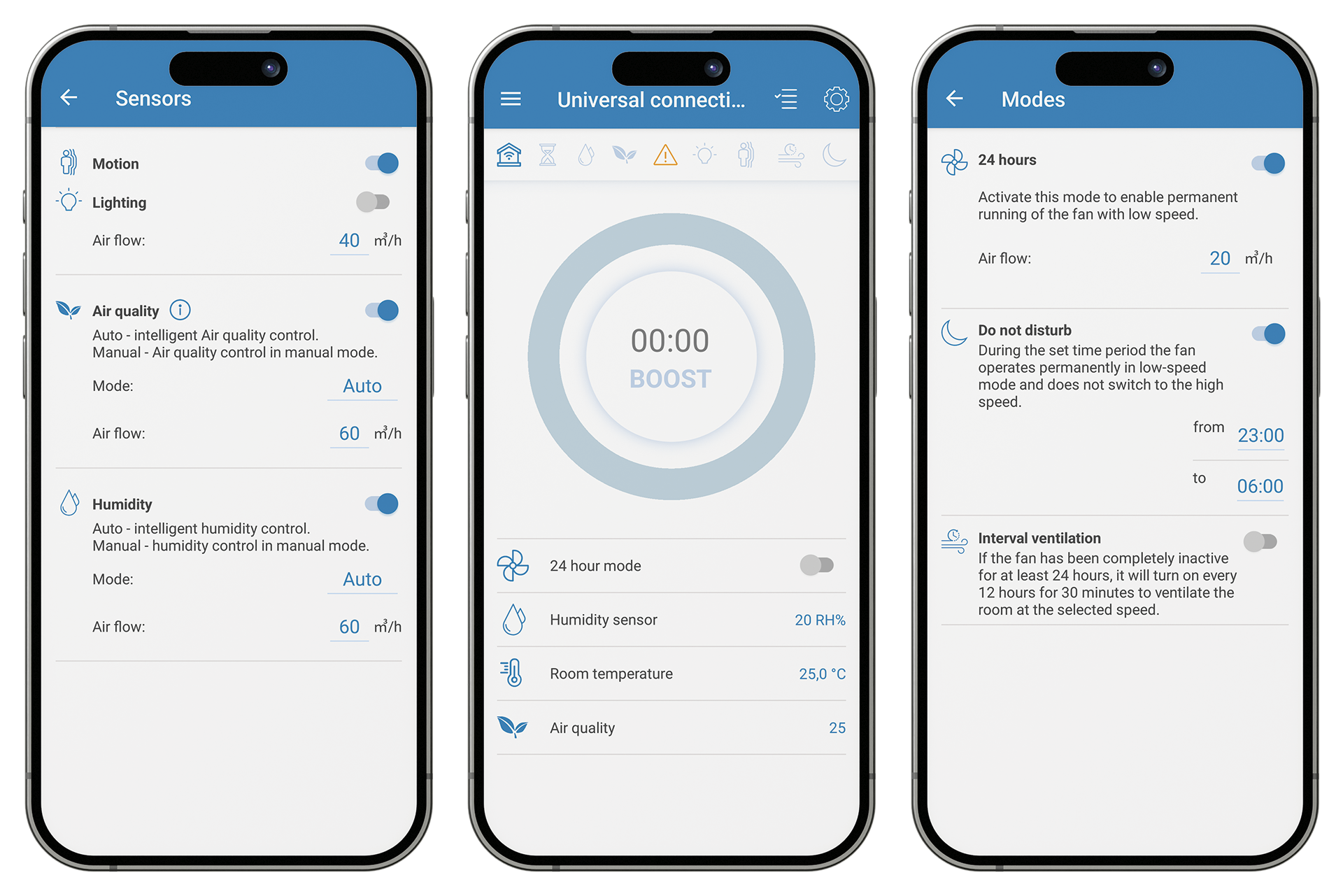

The fan is controlled via a smartphone app, where you can set up sensor-based and mode-based fan operation. You can also use the app to connect the fan to a home Wi-Fi network or cloud server. Remote control options ensure high comfort of your ventilation.

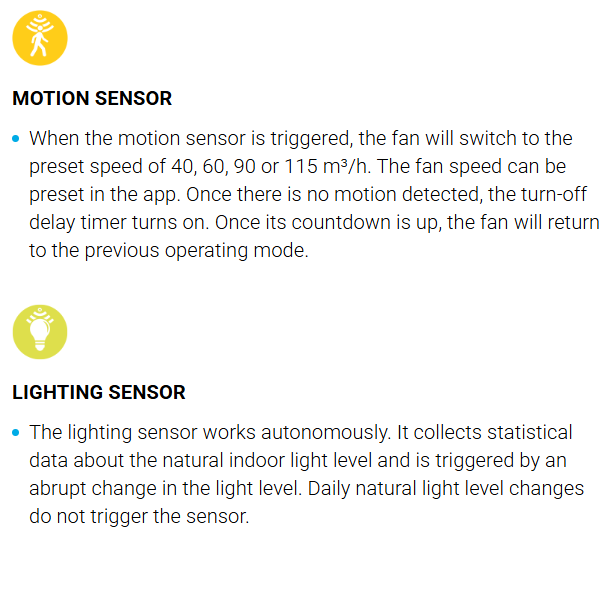

Sensors
