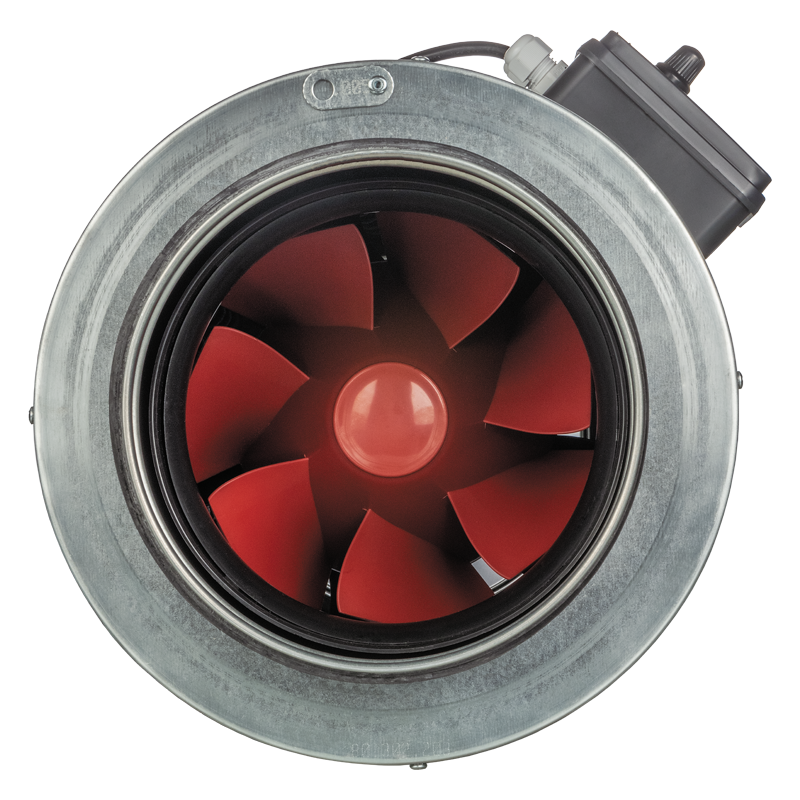

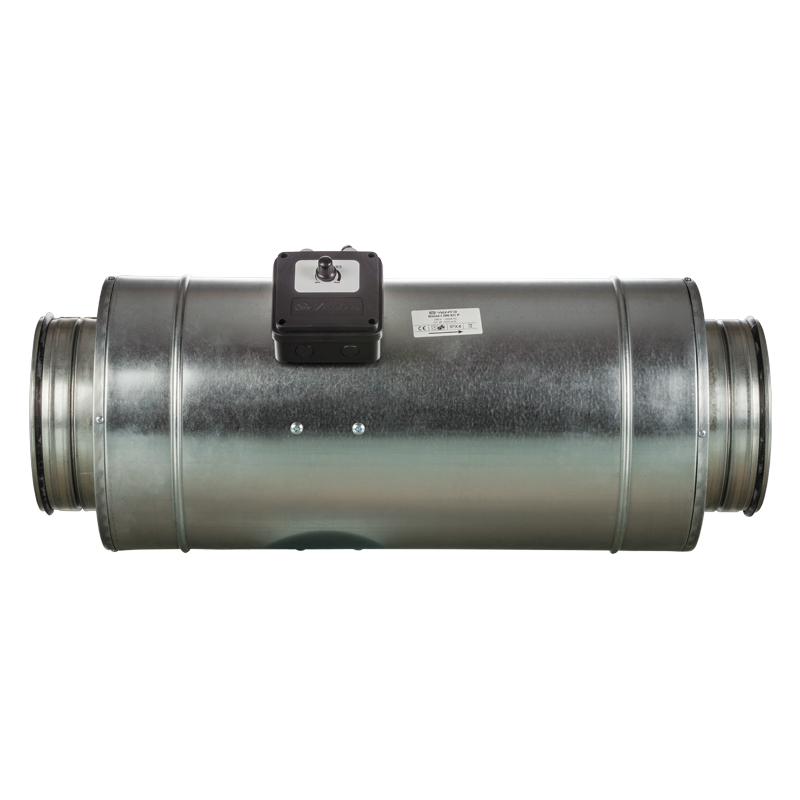

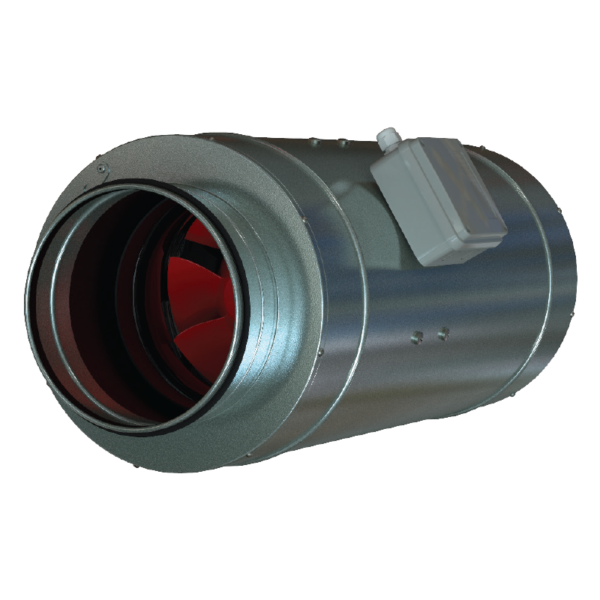

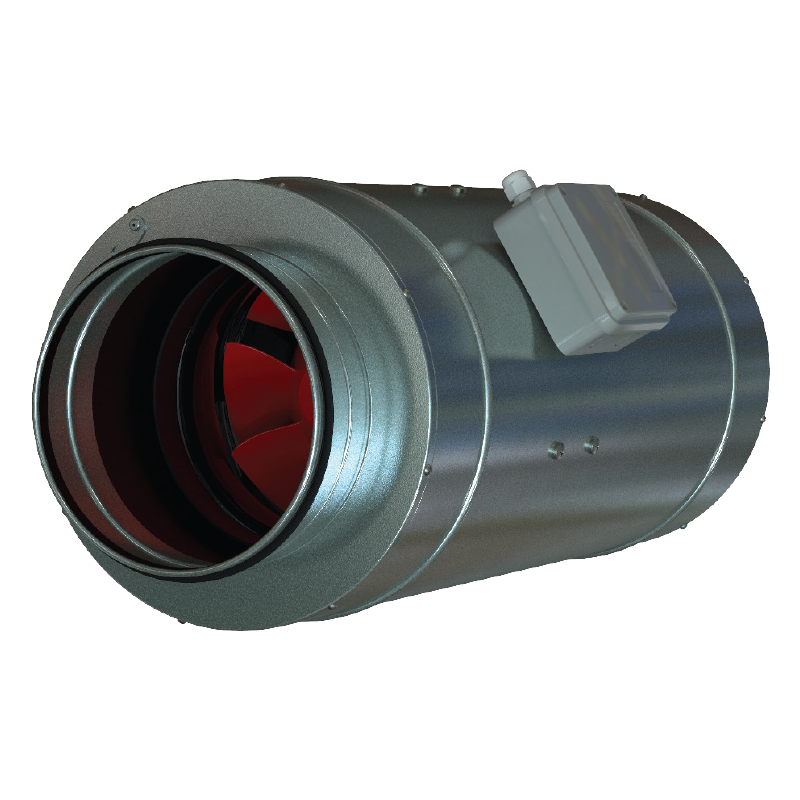

Series Vents Boost-I EC
Mixed-flow inline fans in sound-insulated casings with EC-motors
- Sound insulation
- Motor type: EC
- Impeller type: Mixed-flow
- Casing material: Galvanized steel
- Control: Speed controller

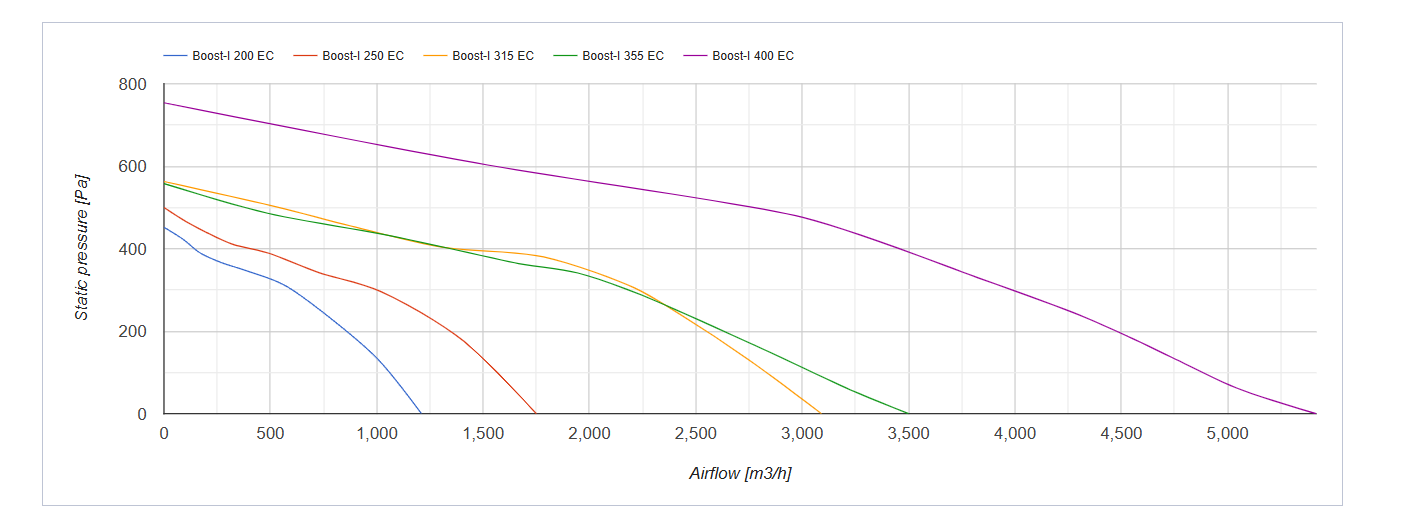

| Lineup Vents Boost-I EC | Connected air duct size, mm | Rated power, W | Maximum airflow, m3/h | Cable with mains plug | Temperature sensor |
|---|---|---|---|---|---|
 Vents Boost-I 200 EC |
200 | 121 | 1210 |  |
|
|
Vents Boost-I 200 EC Un |
200 | 121 | 1210 |  |
|
|
Vents Boost-I 200 EC R |
200 | 121 | 1210 | |
|
|
Vents Boost-I 200 EC P |
200 | 121 | 1210 | |
|
 Vents Boost-I 250 EC |
250 | 168 | 1750 | |
|
|
Vents Boost-I 250 EC Un |
250 | 168 | 1750 | |
|
|
Vents Boost-I 250 EC R |
250 | 168 | 1750 | |
|
|
Vents Boost-I 250 EC P |
250 | 168 | 1750 | |
|
|
Vents Boost-I 315 EC |
315 | 353 | 3090 | ||
|
Vents Boost-I 315 EC Un |
315 | 353 | 3090 | |
|
|
Vents Boost-I 315 EC R |
315 | 353 | 3090 | |
|
|
Vents Boost-I 315 EC P |
315 | 353 | 3090 | ||
|
Vents Boost-I 355 EC |
355 | 353 | 3500 | ||
|
Vents Boost-I 355 EC Un |
355 | 353 | 3500 | |
|
|
Vents Boost-I 355 EC R |
355 | 353 | 3500 | |
|
|
Vents Boost-I 355 EC P |
355 | 353 | 3500 | ||
|
Vents Boost-I 400 EC |
400 | 726 | 5415 | ||
|
Vents Boost-I 400 EC Un |
400 | 726 | 5415 | |
|
 Vents Boost-I 400 EC R |
400 | 726 | 5415 | |
|
|
Vents Boost-I 400 EC P |
400 | 726 | 5415 |
