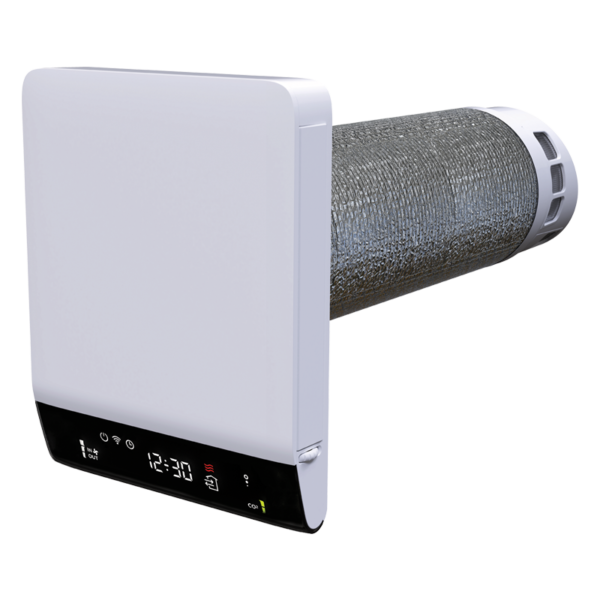

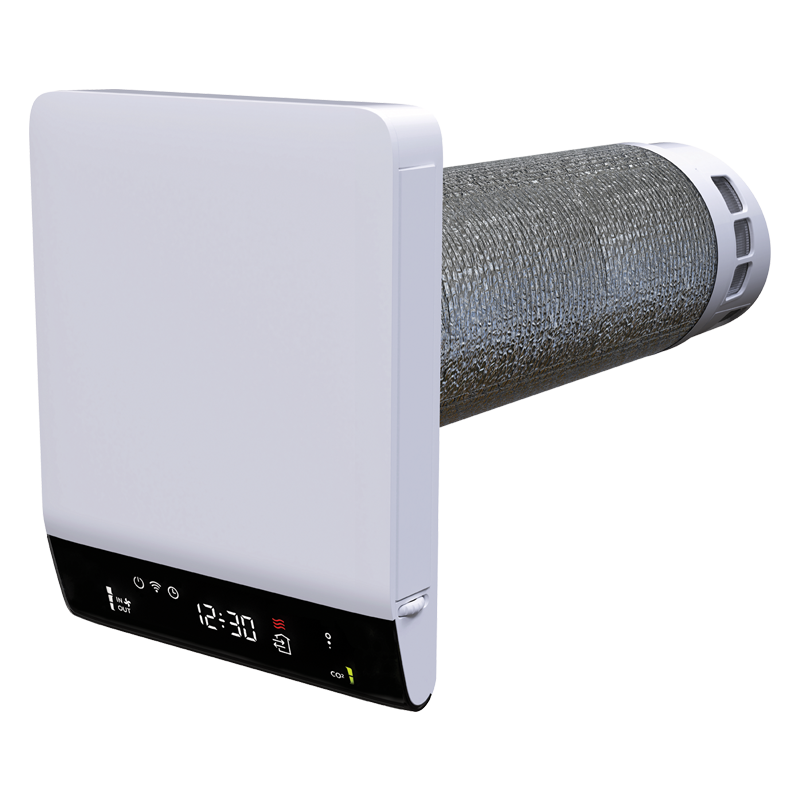

Series Vents Breezy

Single-room high-efficiency HRV units with ceramic heat exchanger, additional air quality sensors and smart control via mobile app

Heat recovery efficiency: 85 %
Filter: G3
Motor type: EC
Preheater: Electric
Control: Remote Control
Casing material: Plastic
Humidity sensor

Series Vents Breezy mota1

Breezy – is modern and efficient solution for ensuring a comfortable microclimate and necessary air exchange in new and renovated residential and public premises.

Advantages of the

BREEZY single-room unit

Series Vents Breezy mota2

Optimal microclimate
in any premises

Series Vents Breezy mota3

Why BREEZY

Breezy simultaneously supplies filtered outdoor air and removes

stale indoor air through a single opening in the external wall

The highest performance among competitors and a unique air

distribution system allow for the installation of just one device in

rooms up to 50 m² (depending on the type of room and the number

of occupants)

The innovative system monitors air quality using temperature, humidity, CO₂,

and tVOC sensors, while electric heating ensures comfortable temperatures

in winter

The highly efficient copper recuperator with antibacterial properties helps save

on heating and air conditioning: warm air is supplied in winter and cool air

in summer

The recuperator has an intelligent control system via a smartphone app. It

can also be connected to Google Home for control over all devices in your

home in a single system

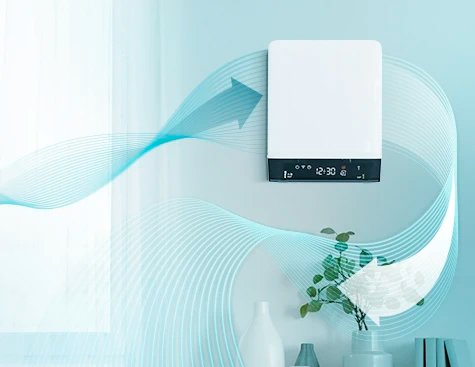

Operation principle

Simultaneous supply of filtered outdoor air and extraction of stale indoor air through a single opening in the external wall. The extracted air transfers its heat to the incoming air in winter and coolness in summer without mixing the streams. This allows the device to maintain an optimal room temperature, reducing heating or air conditioning costs.

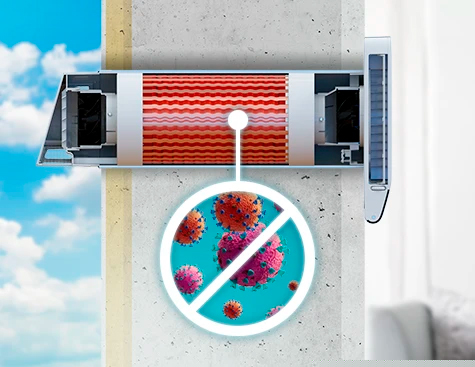

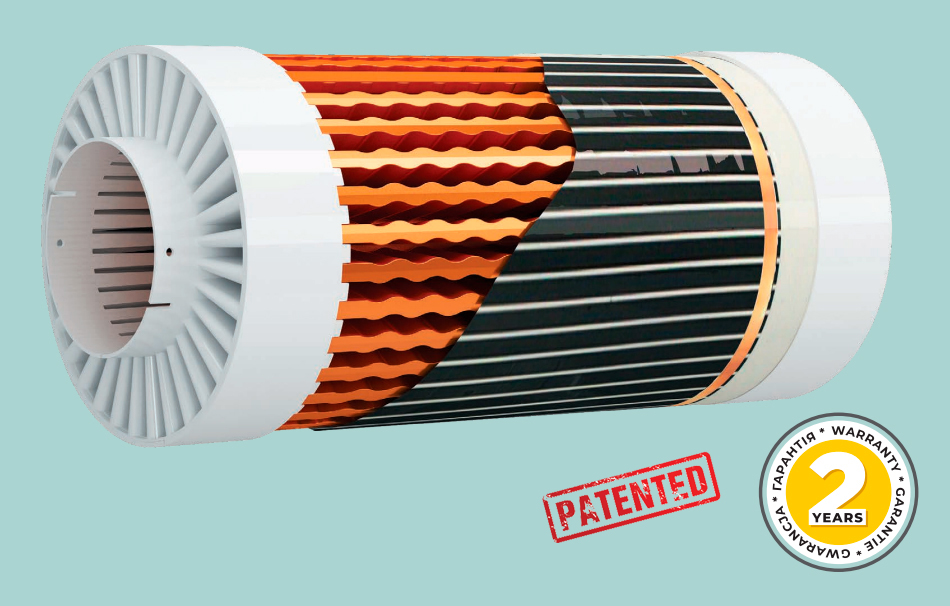

Copper heat exhenger

Advantages:

the use of high-quality refined copper guarantees significant performance thermal conductivity and antiseptic properties;
patented technology and know-how in the form of wavy ribs significantly increase the contact surface for maximum efficiency;
a new and modern automated recuperator production line ensures stable quality;
the design of the recuperator has low air resistance, so the fans consume less electricity and create less noise.

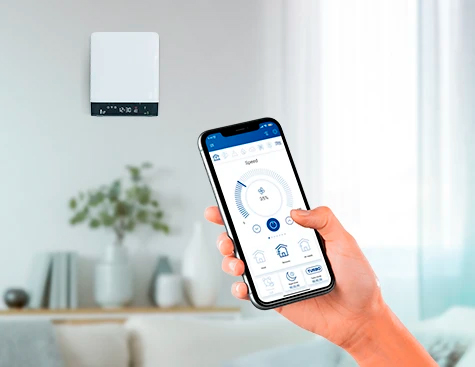

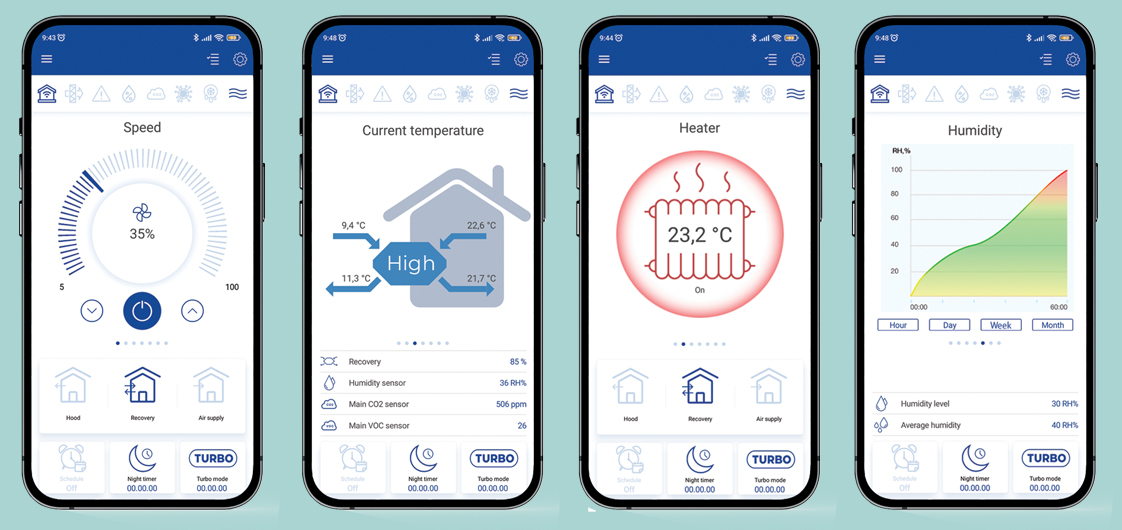

ALL FUNCTIONS ON YOUR SMARTPHONE

Control all functions and parameters via the mobile app and monitor your air quality with indicators and visualized graphs.

ALL FUNCTIONS ON YOUR SMARTPHONE

And even more: just say ‘Hi, Google’ and test, control, and launch Breezy in English, German, Swedish, Norwegian, Danish, Polish, Dutch, French, Spanish languages (availability of the feature may depend on your country, region, and language).”

chplay

Lineup Vents Breezy	Connected air duct size, mm	Rated power, W	Unit current, A	Maximum airflow, m³/h	Sound pressure level LpA at 3 m, dB(A)	Heat recovery efficiency, max, %	Heat exchanger material
Vents Breezy 160-E	160	22	0.62	57	42	88	Copper
Vents Breezy 160-E Smart	160	22	0.62	57	42	88	Copper
Vents Breezy 160-E L055	160	22	0.62	57	42	88	Copper
Vents Breezy 160-E Smart L055	160	22	0.62	57	42	88	Copper
Vents Breezy 160-E L07	160	22	0.62	57	42	88	Copper
Vents Breezy 160-E Smart L07	160	22	0.62	57	42	88	Copper
Vents Breezy 160-E L1	160	22	0.62	57	42	88	Copper
Vents Breezy 160-E Smart L1	160	22	0.62	57	42	88	Copper
Vents Breezy 200-E	200	16	0.63	70	45	85	Copper
Vents Breezy 200-E Smart	200	16	0.63	70	45	85	Copper
Vents Breezy 200-E L055	200	16	0.63	70	45	85	Copper
Vents Breezy 200-E Smart L055	200	16	0.63	70	45	85	Copper
Vents Breezy 200-E L07	200	16	0.63	70	45	85	Copper
Vents Breezy 200-E Smart L07	200	16	0.63	70	45	85	Copper
Vents Breezy 200-E L1	200	16	0.63	70	45	85	Copper
Vents Breezy 200-E Smart L1	200	16	0.63	70	45	85	Copper
