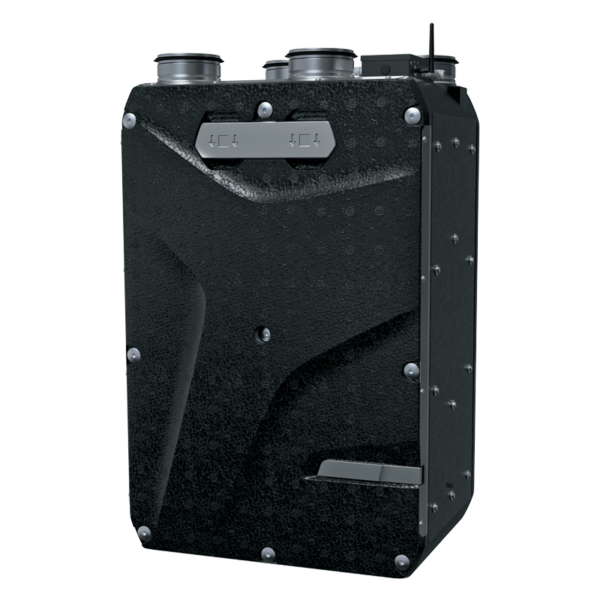

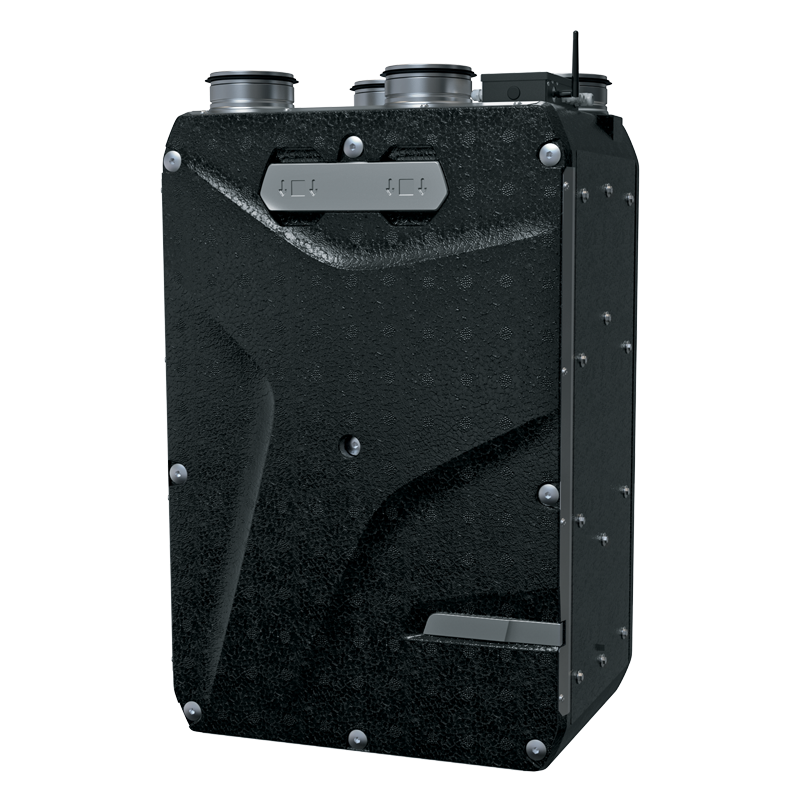

Series Vents Enave 210 / 270 V
Vertical air handling units with a counterflow polystyrene or enthalpy heat exchanger
- Heat exchanger type: Counter flow
- Sound insulation
- Motor type: EC
- Bypass: Manual
- Reheater: Optional
- BMS protocol: ModBus
- Control: Wired control panel
- Casing material: EPP
- Humidity sensor: Optional
- Enthalpy heat exchanger
- Preheater: Built-in
| Lineup Vents Enave 210 / 270 V | Connected air duct size, mm | Rated power, W | Maximum airflow, m3/h | Service side | Control system | Reheater | Preheater | BMS protocol |
|---|---|---|---|---|---|---|---|---|
 Vents Enave 210 V A21 R |
125 | 125 | 277 | Right | А21 | Optional | 0 | ModBus |
|
Vents Enave-T 210 V A21 R |
125 | 125 | 277 | Right | А21 | Optional | 0 | ModBus |
|
Vents Enave 210 VE A21 R |
125 | 125 | 277 | Right | А21 | Optional | Built-in | ModBus |
|
Vents Enave-T 210 VE A21 R |
125 | 125 | 277 | Right | А21 | Optional | Built-in | ModBus |
|
Vents Enave 270 V A21 R |
125 | 182 | 331 | Right | А21 | Optional | 0 | ModBus |
|
Vents Enave-T 270 V A21 R |
125 | 182 | 331 | Right | А21 | Optional | 0 | ModBus |
|
Vents Enave 270 VE A21 R |
125 | 182 | 331 | Right | А21 | Optional | Built-in | ModBus |
|
Vents Enave-T 270 VE A21 R |
125 | 182 | 331 | Right | А21 | Optional | Built-in | ModBus |
