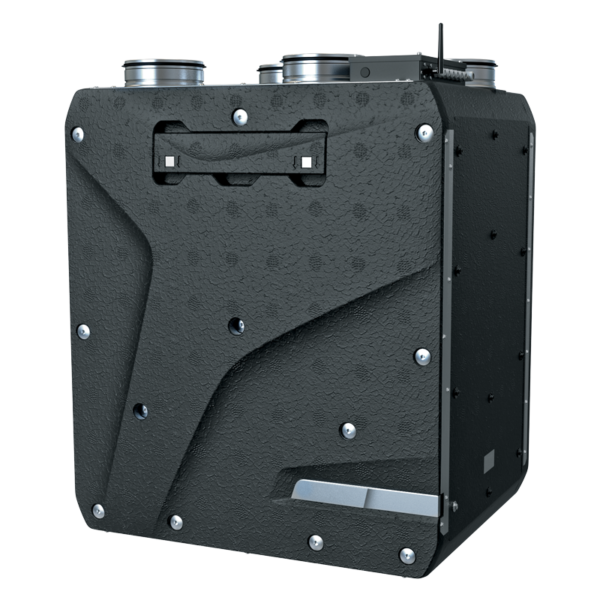

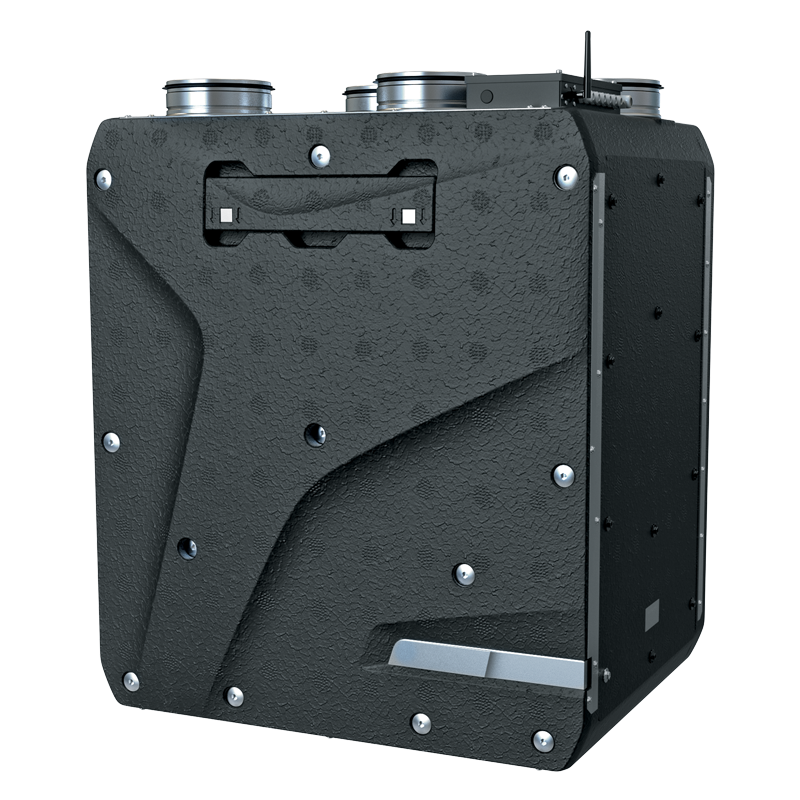

Series Vents Enave 350 V
Vertical air handling units with a counterflow polystyrene or enthalpy heat exchanger
- Heat exchanger type: Counter flow
- Sound insulation
- Motor type: EC
- Bypass: Manual
- Reheater: Optional
- Preheater: Built-in
- BMS protocol: ModBus
- Control: Wired control panel
- Casing material: EPP
- Humidity sensor: Optional
- Enthalpy heat exchanger
| Lineup Vents Enave 350 V | Connected air duct size, mm | Rated power, W | Maximum airflow, m3/h | Service side | Control system | Reheater | Preheater | BMS protocol |
|---|---|---|---|---|---|---|---|---|
 Vents Enave 350 V R A21 |
160 | 213 | 410 | Right | А21 | Optional | Optional | ModBus |
|
Vents Enave-T 350 V R A21 |
160 | 213 | 410 | Right | А21 | Optional | Optional | ModBus |
|
Vents Enave 350 VE R A21 |
160 | 213 | 410 | Right | А21 | Optional | Built-in | ModBus |
|
Vents Enave-T 350 VE R A21 |
160 | 213 | 410 | Right | А21 | Optional | Built-in | ModBus |
 Vents Enave 351 V R A21 |
160 | 213 | 410 | Right | А21 | Optional | Optional | ModBus |
|
Vents Enave-T 351 V R A21 |
160 | 213 | 410 | Right | А21 | Optional | Optional | ModBus |
|
Vents Enave 351 VE R A21 |
160 | 213 | 410 | Right | А21 | Optional | Built-in | ModBus |
|
Vents Enave-T 351 VE R A21 |
160 | 213 | 410 | Right | А21 | Optional | Built-in | ModBus |
