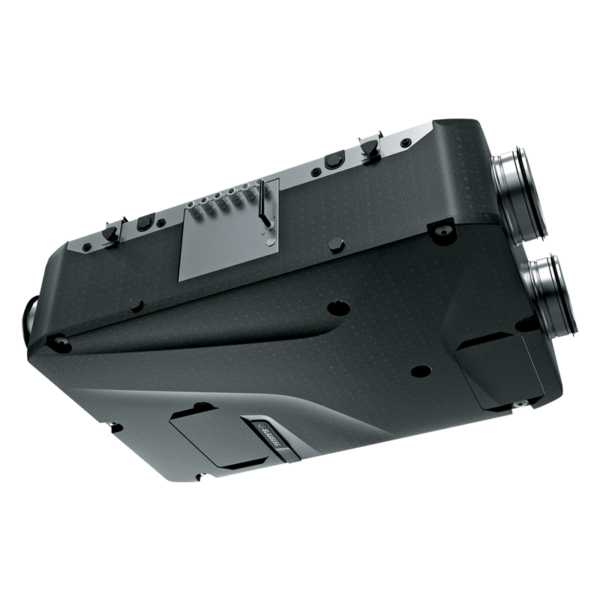

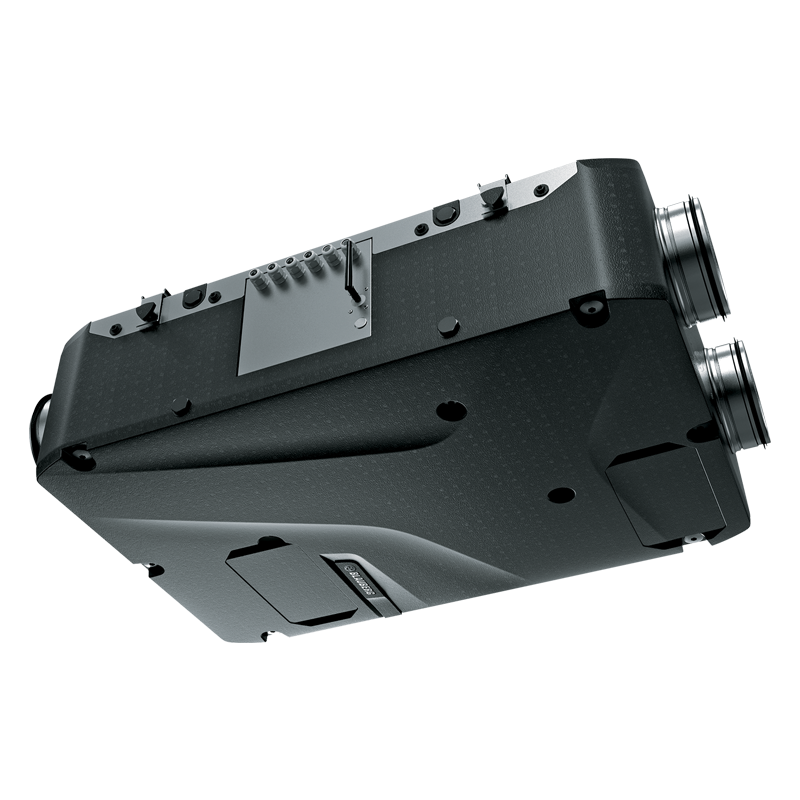

Series Vents Enave P
Suspended air handling units with a counterflow polystyrene or enthalpy heat exchanger
- Heat exchanger type: Counter flow
- Sound insulation
- Motor type: EC
- Bypass: Manual
- Reheater: Optional
- Preheater: Optional
- BMS protocol: ModBus
- Control: Wired control panel
- Casing material: EPP
- Humidity sensor: Optional
- Enthalpy heat exchanger
| Lineup Vents Enave P | Connected air duct size, mm | Rated power, W | Maximum airflow, m3/h | Control system | Reheater | Preheater | BMS protocol |
|---|---|---|---|---|---|---|---|
 Vents Enave 180 P A21 |
160 | 53 | 181 | А21 | Optional | Optional | ModBus |
|
Vents Enave-T 180 P A21 |
160 | 53 | 181 | А21 | Optional | Optional | ModBus |
 Vents Enave 181 P A21 |
160 | 53 | 181 | А21 | Optional | Optional | ModBus |
|
Vents Enave-T 181 P A21 |
160 | 53 | 181 | А21 | Optional | Optional | ModBus |
|
Vents Enave 240 P A21 |
160 | 171 | 310 | A21 | Optional | Optional | ModBus |
|
Vents Enave-T 240 P A21 |
160 | 171 | 310 | А21 | Optional | Optional | ModBus |
|
Vents Enave 241 P A21 |
160 | 171 | 310 | А21 | Optional | Optional | ModBus |
|
Vents Enave-T 241 P A21 |
160 | 171 | 310 | А21 | Optional | Optional | ModBus |
|
Vents Enave 180 P A14 |
160 | 53 | 181 | A14 | |||
|
Vents Enave-T 180 P A14 |
160 | 53 | 181 | A14 | |||
|
Vents Enave 181 P A14 |
160 | 53 | 181 | A14 | |||
|
Vents Enave-T 181 P A14 |
160 | 53 | 181 | A14 | |||
|
Vents Enave 240 P A14 |
160 | 171 | 310 | A14 | |||
|
Vents Enave-T 240 P A14 |
160 | 171 | 310 | A14 | |||
|
Vents Enave 241 P A14 |
160 | 171 | 310 | A14 | |||
|
Vents Enave-T 241 P A14 |
160 | 171 | 310 | A14 |
