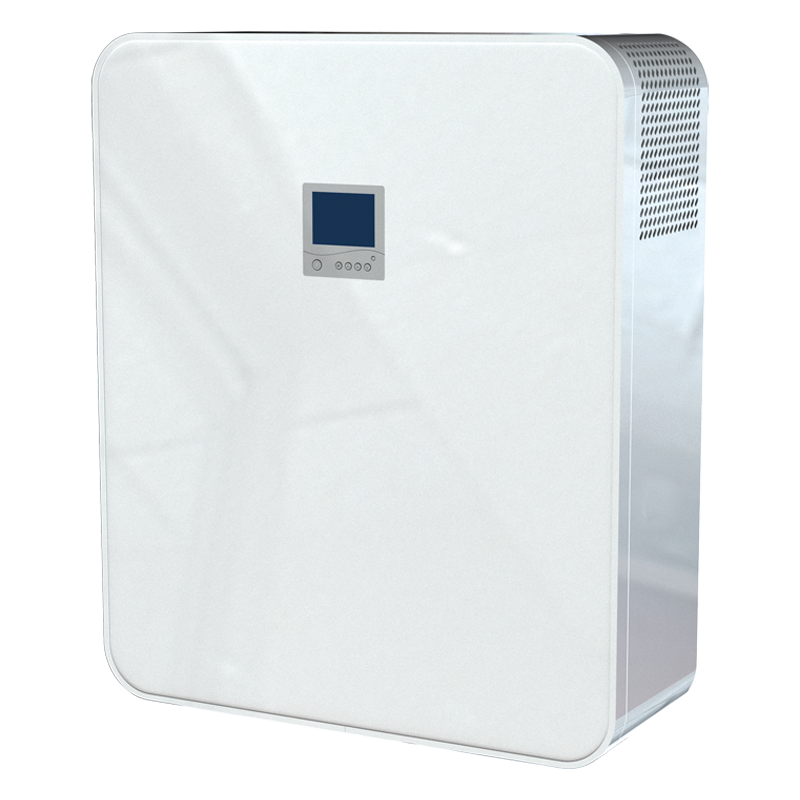

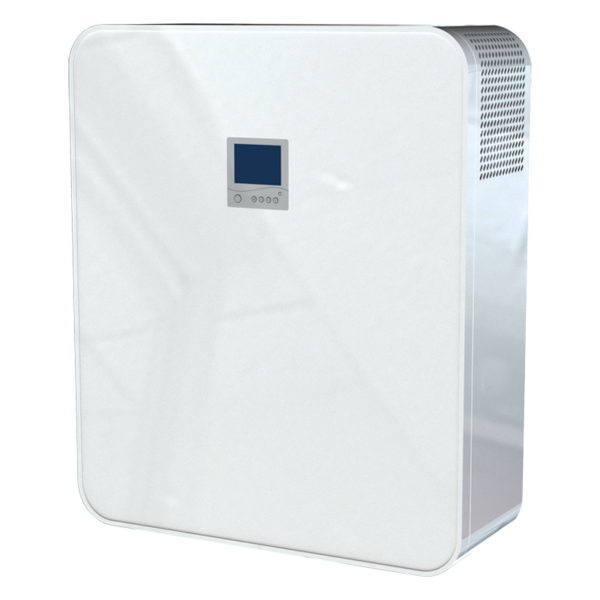

Series Vents Micra 100
Basic compact wall AHU with an air flow of up to 100 m³/h
- Heat recovery efficiency: 96 %
- Heat exchanger type: Counter flow
- Sound insulation
- Motor type: EC
- Bypass: Auto
- Control: Built-in control panel
- Casing material: Coated steel
- Enthalpy heat exchanger
- Reheater: Electric
- Preheater: Electric
| Lineup Vents Micra 100 | Rated power, W | Maximum airflow, m3/h | Sound pressure level LpA at 3 m, dB(A) | Heat recovery efficiency, max, % | Enthalpy heat exchanger | Reheater | Preheater | Control | Mounting type |
|---|---|---|---|---|---|---|---|---|---|
 Vents Micra 100
|
45 | 100 | 39 | 98 |  |
|
|
Built-in control panel | Wall |
|
Vents Micra 100 ERV
|
45 | 100 | 39 |  |
|
|
Built-in control panel | Wall | |
|
Vents Micra 100 E
|
45 | 100 | 39 | 98 | |
Electric | |
Built-in control panel | Wall |
|
Vents Micra 100 E ERV
|
45 | 100 | 39 | |
Electric | |
Built-in control panel | Wall | |
|
Vents Micra 100 E1
|
45 | 100 | 39 | |
|
Electric | Built-in control panel | Wall | |
|
Vents Micra 100 E1 ERV
|
45 | 100 | 39 | |
|
Electric | Built-in control panel | Wall | |
|
Vents Micra 100 E2
|
45 | 100 | 39 | |
Electric | Electric | Built-in control panel | Wall | |
|
Vents Micra 100 E2 ERV
|
45 | 100 | 39 | |
Electric | Electric | Built-in control panel | Wall |
