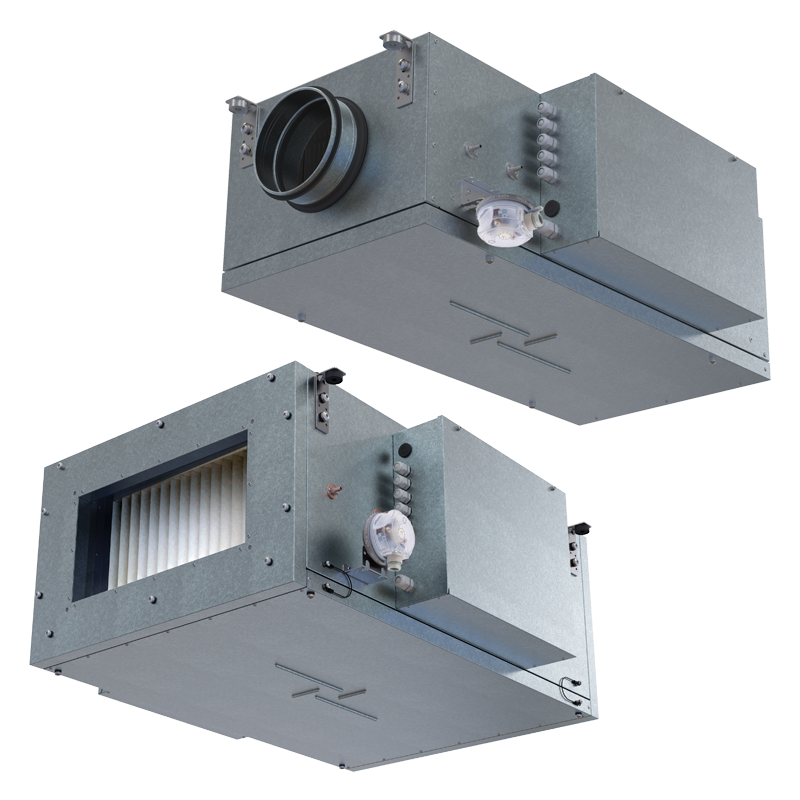

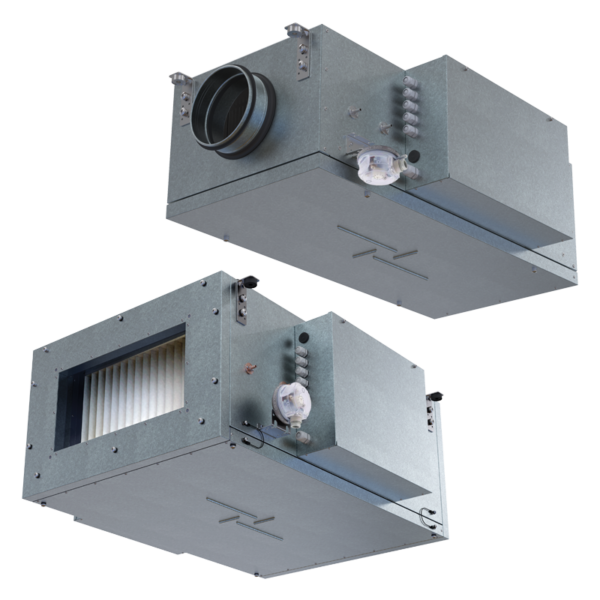

Series Vents MPA E EC A31

• Filter: Coarse 90% / G4 (option ePM1 70% / F7)
• Sound insulation
• Motor type: EC
• Reheater: Electric
• BMS protocol: ModBus
• Control: Wired control panel
• Casing material: Aluzinc steel

Lineup Vents MPA E EC A31	Connected air duct size, mm	Maximum supply voltage, V	Rated power, W	Maximum airflow, m3/h	Sound pressure level LpA at 3 m, dB(A)
Vents MPA 300 E-1.7 EC A31	160	230	64	365	35
Vents MPA 300 E-5.1 EC A31	160	230	64	354	35
Vents MPA 400 E-2.4 EC A31	200	230	62	430	31
Vents MPA 400 E-3.3 EC A31	200	230	62	430	31
Vents MPA 400 E-6.0 EC A31	200	400	62	430	31
Vents MPA 700 E-3.0 EC A31	250	400	116	760	41
Vents MPA 700 E-6.0 EC A31	250	400	116	760	41
Vents MPA 700 E-9.0 EC A31	250	400	116	760	41
Vents MPA 1000 E-6.0 EC A31	400×200	400	165	1000	45
Vents MPA 1000 E-12.0 EC A31	400×200	400	165	1000	45
Vents MPA 1000 E-15.0 EC A31	400×200	400	165	1000	45
Vents MPA 1500 E-9.0 EC A31	500×250	400	223	1500	46
Vents MPA 1500 E-14.0 EC A31	500×250	400	223	1500	46
Vents MPA 1500 E-18.0 EC A31	500×250	400	223	1500	46
Vents MPA 2000 E-12.0 EC A31	500×300	400	406	2450	48
Vents MPA 2000 E-18.0 EC A31	500×300	400	406	2450	48
Vents MPA 2000 E-24.0 EC A31	500×300	400	406	2450	48
Vents MPA 3000 E-18.0 EC A31	600×300	400	472	3150	47
Vents MPA 3000 E-27.0 EC A31	600×300	400	472	3150	47
Vents MPA 3000 E-45.0 EC A31	600×300	400	472	3150	47
Vents MPA 4000 E-24.0 EC A31	700×400	400	717	5000	49
Vents MPA 4000 E-45.0 EC A31	700×400	400	717	5000	49
Vents MPA 4000 E-54.0 EC A31	700×400	400	717	5000	49
