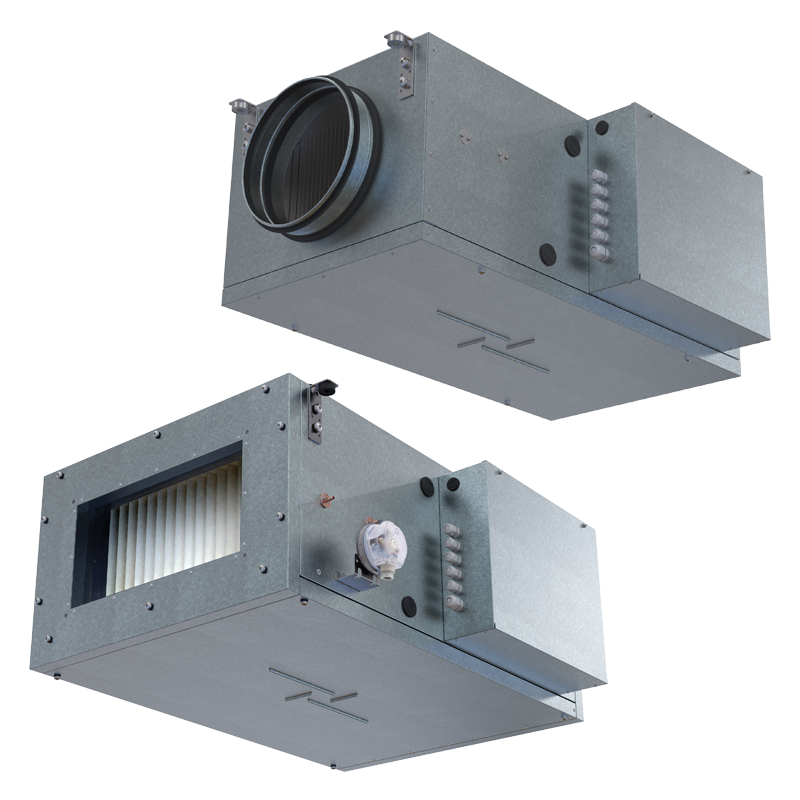

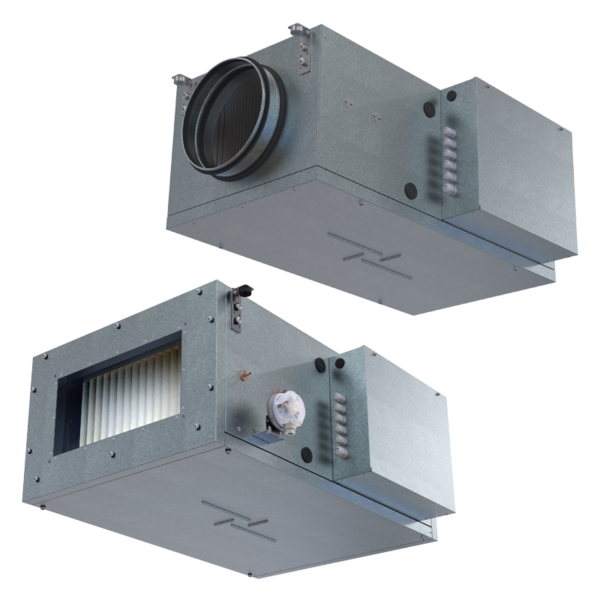

Series Vents MPA W EC A31

Air supply units in the sound- and heat-insulated casing

• Filter: Coarse 90% / G4 (option ePM1 70% / F7)
• Sound insulation
• Motor type: EC
• Reheater: Water
• BMS protocol: ModBus
• Control: Wired control panel
• Casing material: Aluzinc steel

Lineup Vents MPA W EC A31	Connected air duct size, mm	Maximum supply voltage, V	Rated power, W	Maximum airflow, m3/h	Sound pressure level LpA at 3 m, dB(A)
Vents MPA 700 W EC A31	250	230	139	800	44
Vents MPA 1000 W EC A31	400×200	230	165	920	48
Vents MPA 1500 W EC A31	500×250	230	222	1445	49
Vents MPA 2000 W EC A31	500×300	230	387	2150	53
Vents MPA 3000 W EC A31	600×300	230	425	2930	52
Vents MPA 4000 W EC A31	700×400	230	698	4950	54
