Series Vents PA

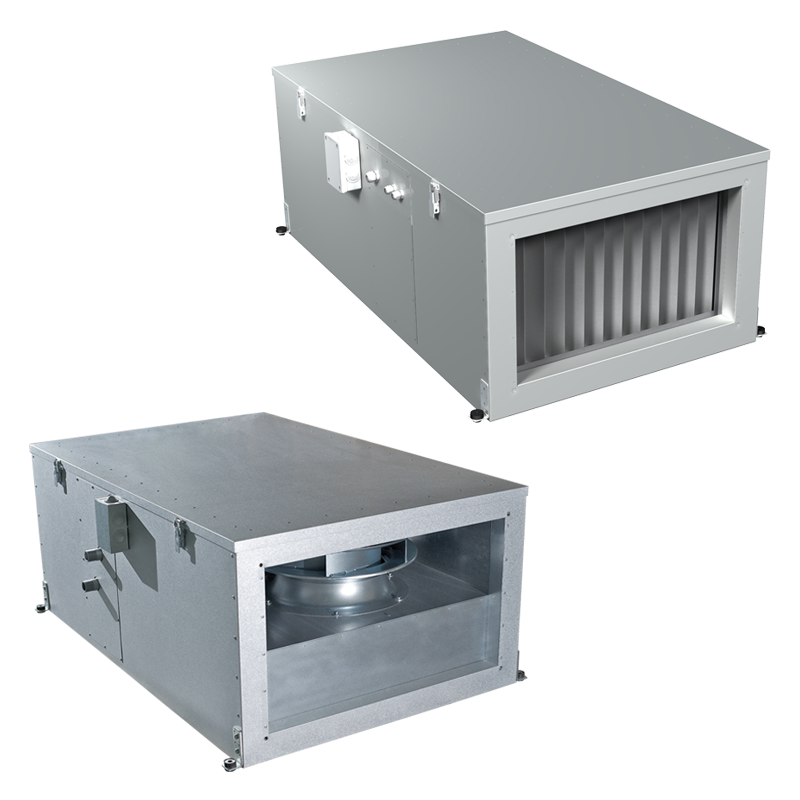

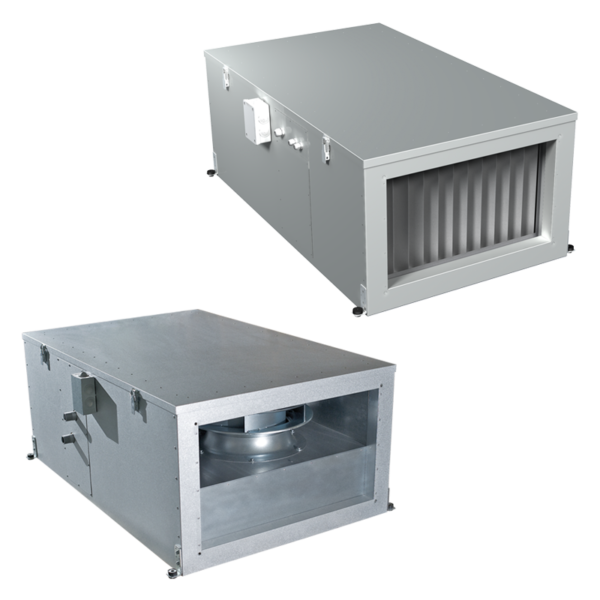

Suspended air supply units in the sound- and heat-insulated casing with the water or electric heater
- Filter: G4 (F7 option)
- Sound insulation
- Motor type: AC
- Reheater: Water
- Control: Remote Control
- Casing material: Galvanized steel
| Lineup Vents PA | Connected air duct size, mm | Speed | Maximum supply voltage, V | Rated power, W | Maximum airflow, m3/h | Sound pressure level LpA at 3 m, dB(A) |
|---|---|---|---|---|---|---|
 Vents PA 01 E LCD |
400×200 | 1 | 400 | 320 | 1275 | 51 |
|
Vents PA 02 E LCD |
500×300 | 1 | 400 | 620 | 2500 | 54 |
|
Vents PA 03 E LCD |
600×350 | 1 | 400 | 1330 | 3350 | 57 |
 Vents PA 01 W2 LCD |
400×200 | 1 | 400 | 320 | 1200 | 51 |
|
Vents PA 01 W4 LCD |
400×200 | 1 | 400 | 320 | 1200 | 51 |
|
Vents PA 02 W2 LCD |
500×300 | 1 | 400 | 620 | 2350 | 54 |
|
Vents PA 02 W4 LCD |
500×300 | 1 | 400 | 620 | 2350 | 54 |
|
Vents PA 03 W2 LCD |
600×350 | 1 | 400 | 1330 | 3260 | 57 |
|
Vents PA 03 W4 LCD |
600×350 | 1 | 400 | 1330 | 3260 | 57 |
|
Vents PA 04 W2 LCD |
700×400 | 1 | 400 | 2300 | 4100 | 75 |
|
Vents PA 04 W3 LCD |
700×400 | 1 | 400 | 2300 | 4100 | 75 |
