- Motor type: DC
- Casing material: Plastic
- Humidity sensor
- Timer: Turn off timer
- Low noise and high performance for fast humidity reduction and unpleasant smell removal in utility spaces.
- The use of DC motor ensures a low power consumption level: only 3.5 W even at the highest speed.
- Wide range of models with various options to match different customer needs and demands.
- High water ingress protection rating IP45 allows to install the fan bathrooms or utility spaces.
- The casing made of ABC-plastic does not turn yellow or change its original appearance.
- Two-speed operation modes.
- Equipped with an adjustable turn-off delay timer (from 2 to 30 minutes).
 |
Low noise and high performance High air flow and low noise is ensured via a special impeller of aerodynamic shape and a unique motor design equipped with a rubber anti-vibration connector. |
|---|---|
 |
Reliability
The unit series is equipped with a modern DC motor of l ow power consumption. The motor is equipped with overheating protection and is maintenance free for all motor service life. The electronic elements of the fan are covered with special airtight covers, which ensures the unit’s reliability and durability. The fan’s impeller and casing are made of durable high-quality UV-resistant plastic. |
 |
No back flow
The specially designed back valve prevents heat losses and back indoor airflow when the fan is off. |
 |
Ease of maintenance
The fan can be easily cleaned from dust or dirt. The removable front panel is washable under running water. |
Use
- Residential premises
- Offices
- Utility spaces with normal and increased humidity

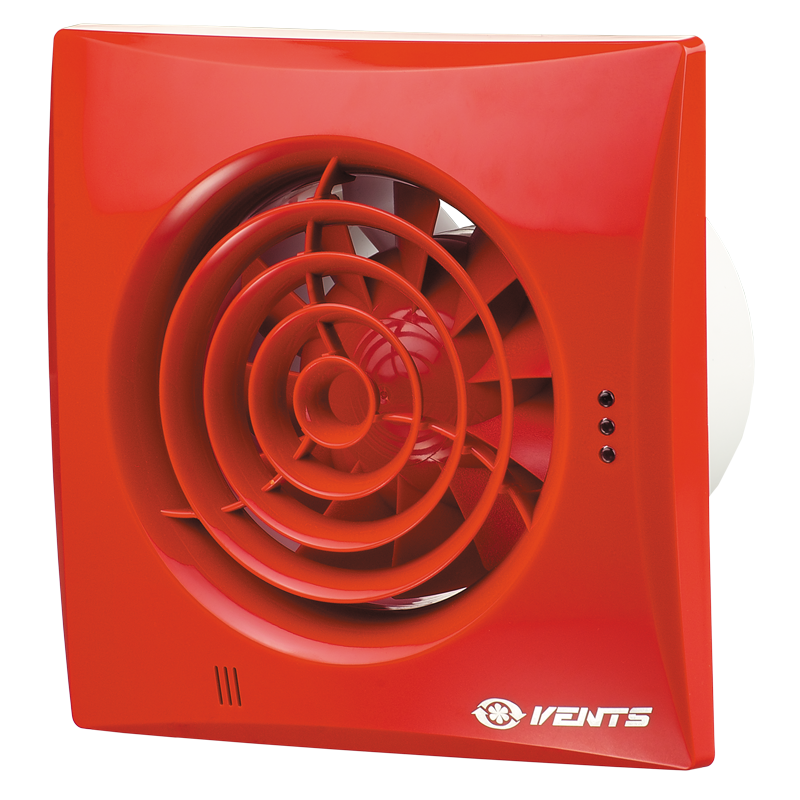

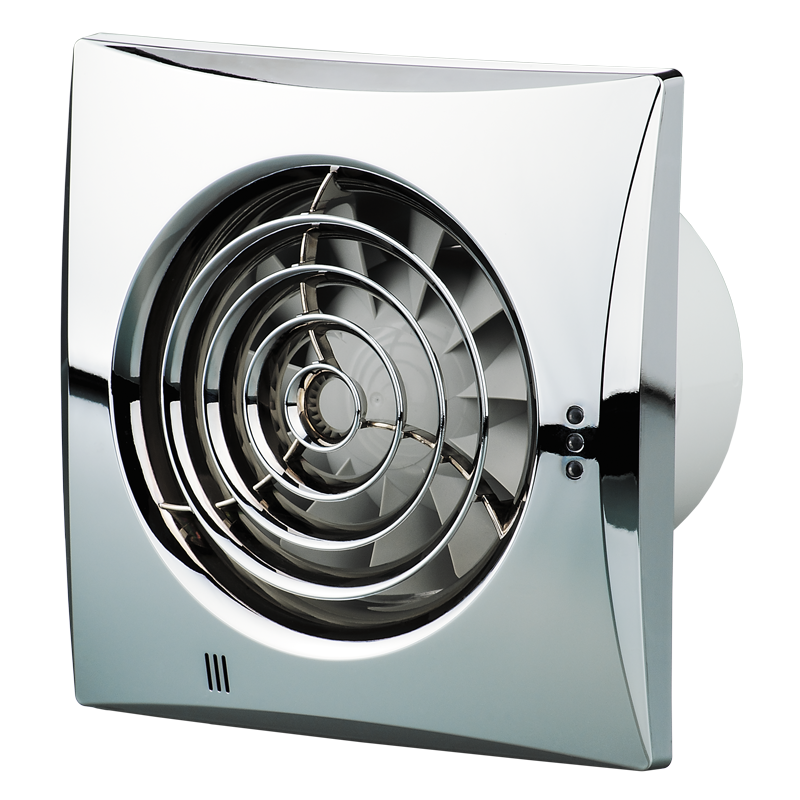

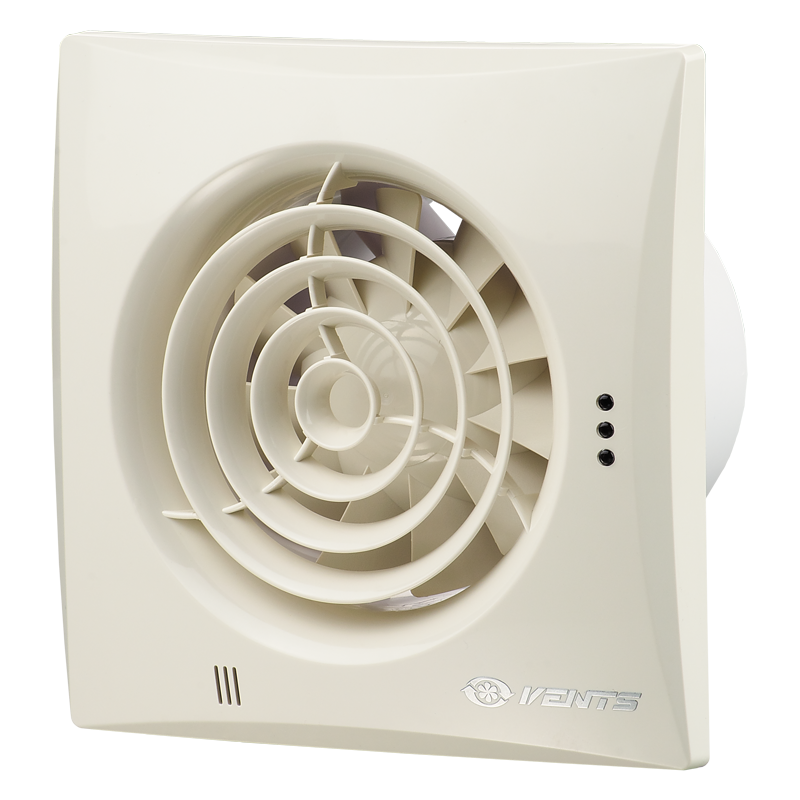

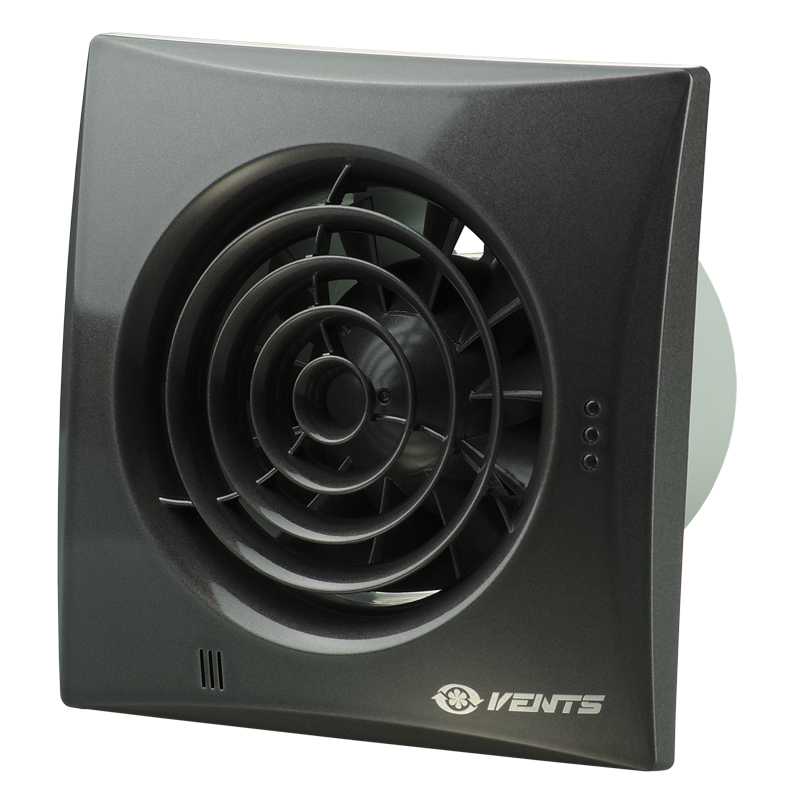

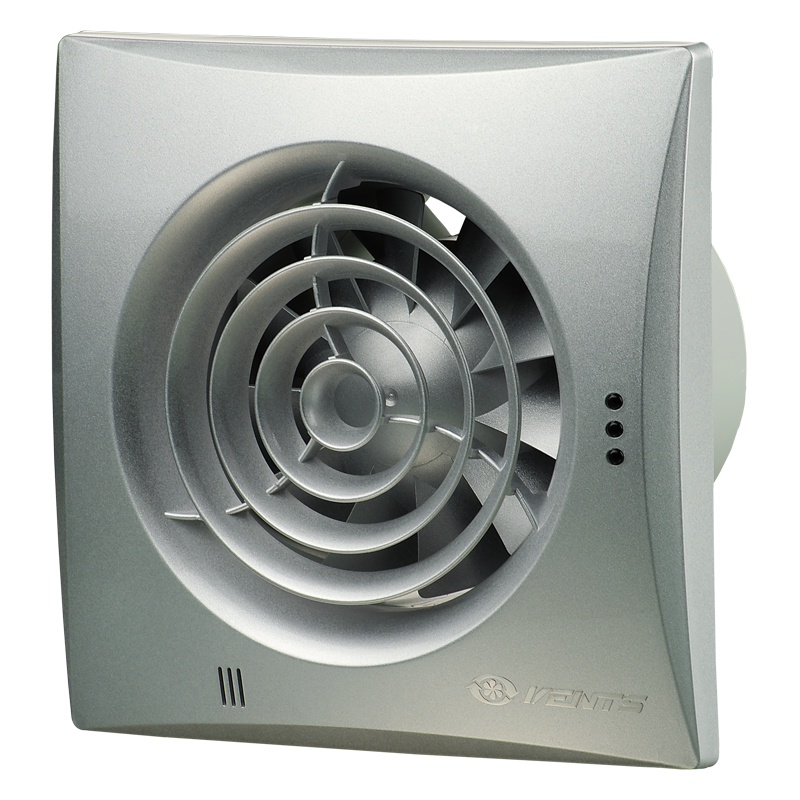

Colour modifications:
 |
 |
 |
|---|---|---|
 |
 |
|---|---|

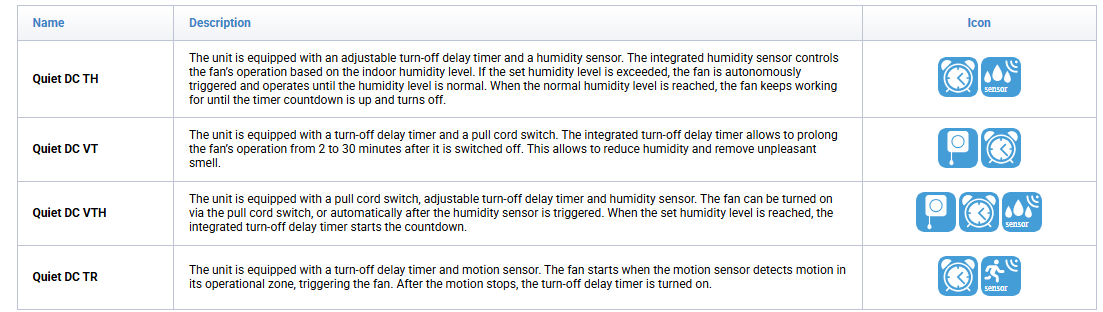

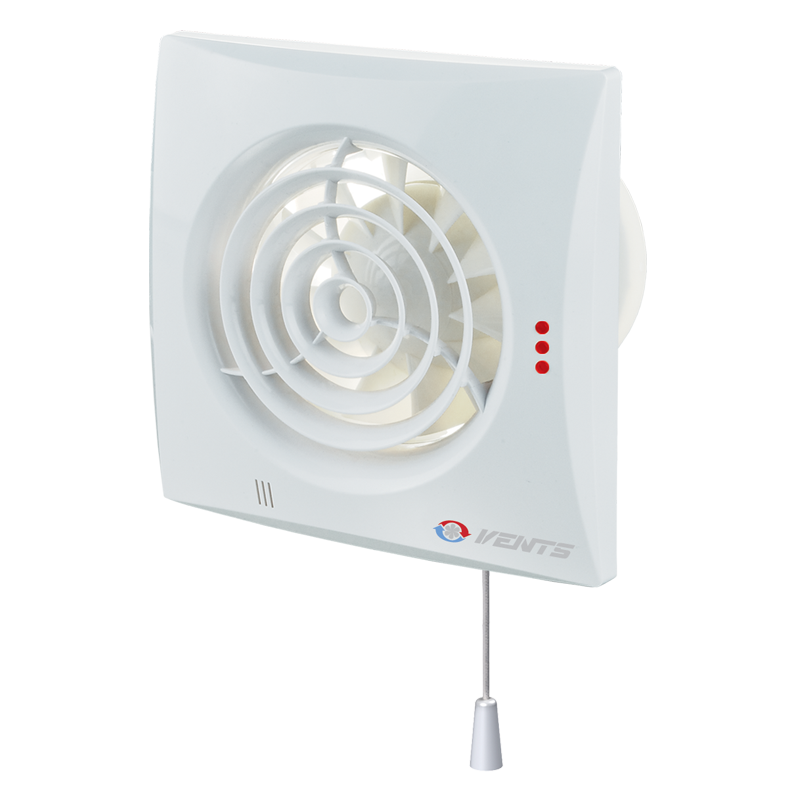

Models of this series can be equipped with extra options:
The operating modes of the Quiet DC fan are selected and set up by setting the DIP switch on the casing to the appropriate position.
Mode 1 (single-speed)
- The fan is off by default. After the sensor is triggered or the switch is turned on, the fan starts operating at a low speed.
Mode 2 (single-speed)
- The fan is off by default. After the sensor is triggered or the switch is turned on, the fan starts operating at a high speed.
Mode 3 (two-speed)
- The fan is constantly operating at a low speed by default. After the sensor is triggered or the switch is turned, the fan switches to a high speed.
Mode 4 (two-speed)
- The fan is off by default. After the switch is turned on, the fan starts operating at a low speed. If the sensor is triggered, the fan switches to a high speed.
| Lineup Vents Quiet DC | Connected air duct size, mm | Rated power, W | Maximum airflow, m3/h | Sound pressure level LpA at 3 m, dB(A) | Humidity sensor | Timer |
|---|---|---|---|---|---|---|
 Vents Quiet 100 DC TH
|
100 | 3.5 | 101 | 27 |  |
|
