Series Vents Quiet-Mild

• Low noise and high performance for fast humidity reduction and unpleasant smell removal in utility spaces.
• Wide range of models with various options to match different customer needs and demands.
• High water ingress protection rating IP45 allows to install the fan bathrooms or utility spaces.
• The casing made of ABC-plastic does not turn yellow or change its original appearance.
• Energy efficient motor on rolling bearings is rated for long-term operation.
• Back valve protects the room from drafts.

ADVANTAGES OF THE FAN

	Low noise and high performance High air flow and low noise is ensured via a special impeller of aerodynamic shape and a unique motor design equipped with a rubber anti-vibration connector.
	Reliability The series is equipped with a motor on ball bearings with minimum power consumption. The motor is equipped with overheating protection and is maintenance free for all motor service life. The electronic elements of the fan are covered with special airtight covers, which ensures the unit’s reliability and durability. The fan’s impeller and casing are made of durable high-quality UV-resistant plastic.
	No back flow The specially designed back valve prevents heat losses and back indoor airflow when the fan is off.
	Ease of maintenance The fan can be easily cleaned from dust or dirt. The removable front panel is washable under running water.

Use

• Residential premises
• Offices
• Utility spaces with normal and increased humidity

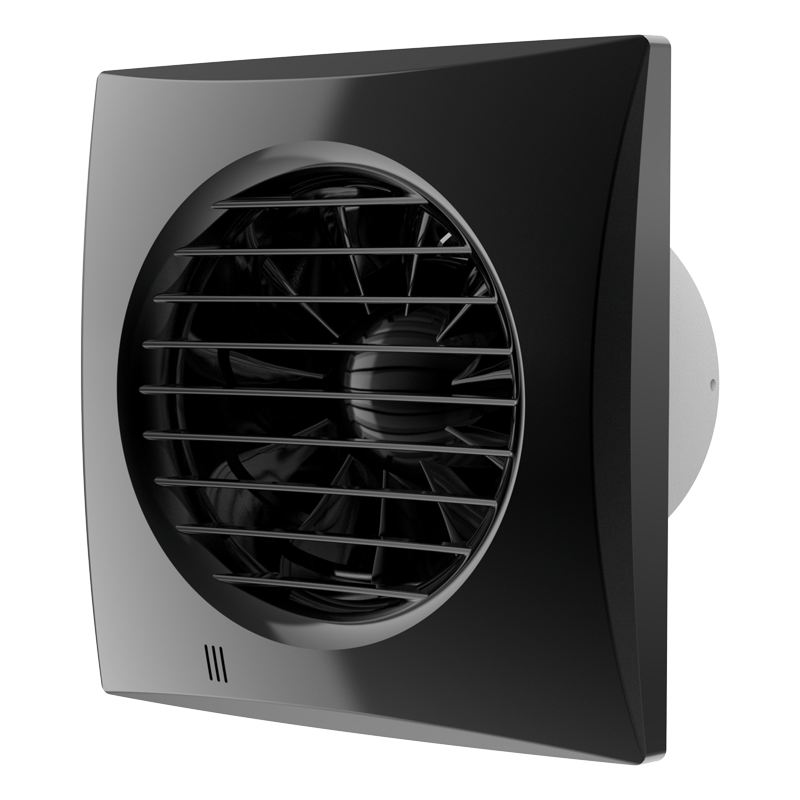

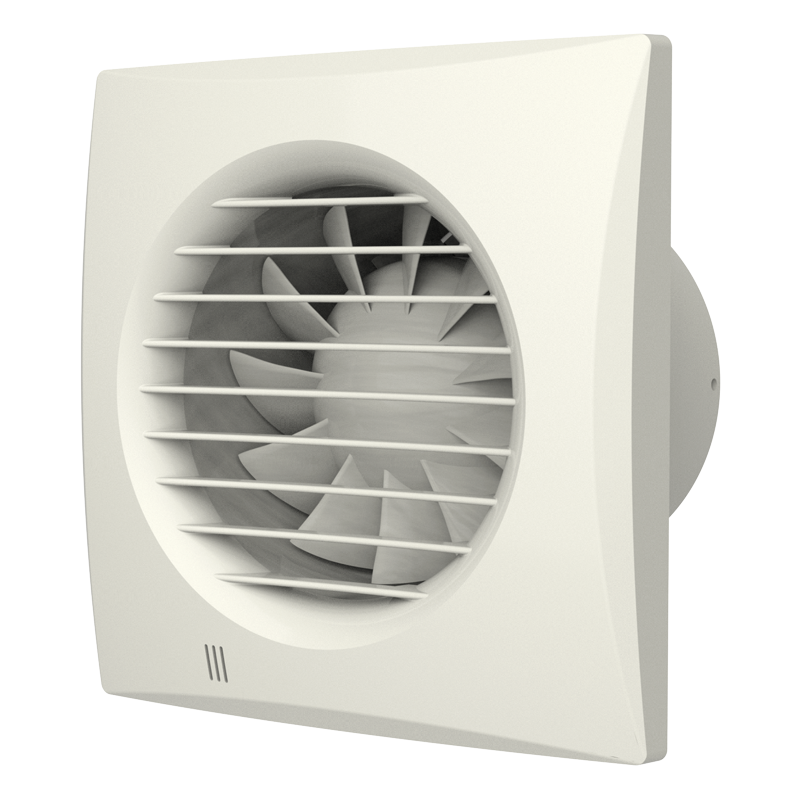

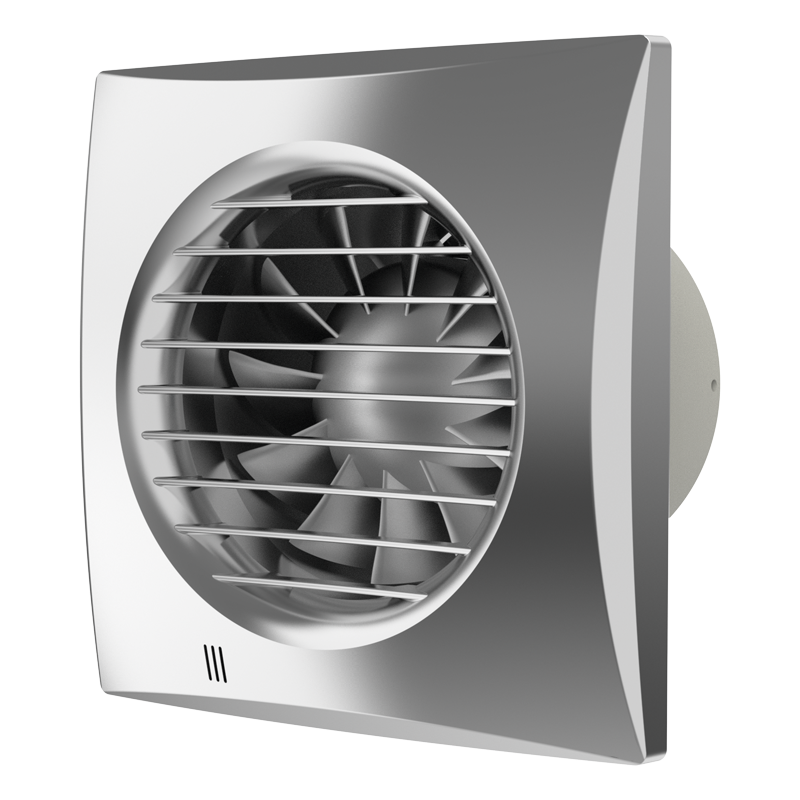

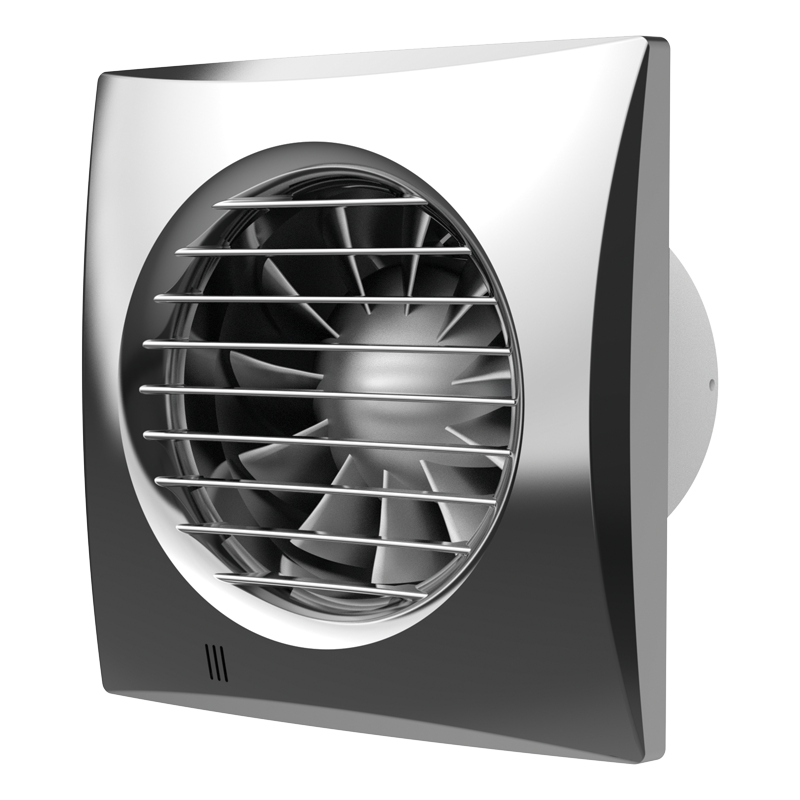

Colour modifications:

MODIFICATIONS

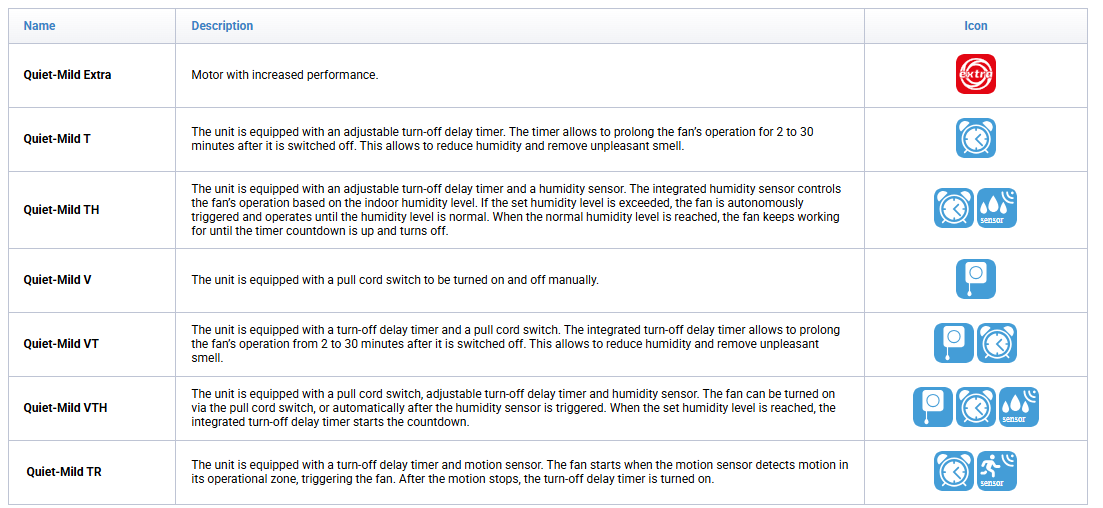

Models of this series can be equipped with extra options:

Lineup Vents Quiet-Mild	Connected air duct size, mm	Rated power, W	Maximum airflow, m3/h	Sound pressure level LpA at 3 m, dB(A)	Motion sensor	Pull cord	Humidity sensor	Timer
Vents Quiet-Mild 100	100	7.5	97	25
Vents Quiet-Mild 100 Dou	100	7	90	25
Vents Quiet-Mild 125	125	17	185	32
Vents Quiet-Mild 125 Dou	125	13.5	170	32
Vents Quiet-Mild 150	150	19	315	33
