Series Vents Quiet-Style

• Motor type: AC
• Casing material: Plastic
• Timer: Turn off timer
• Humidity sensor

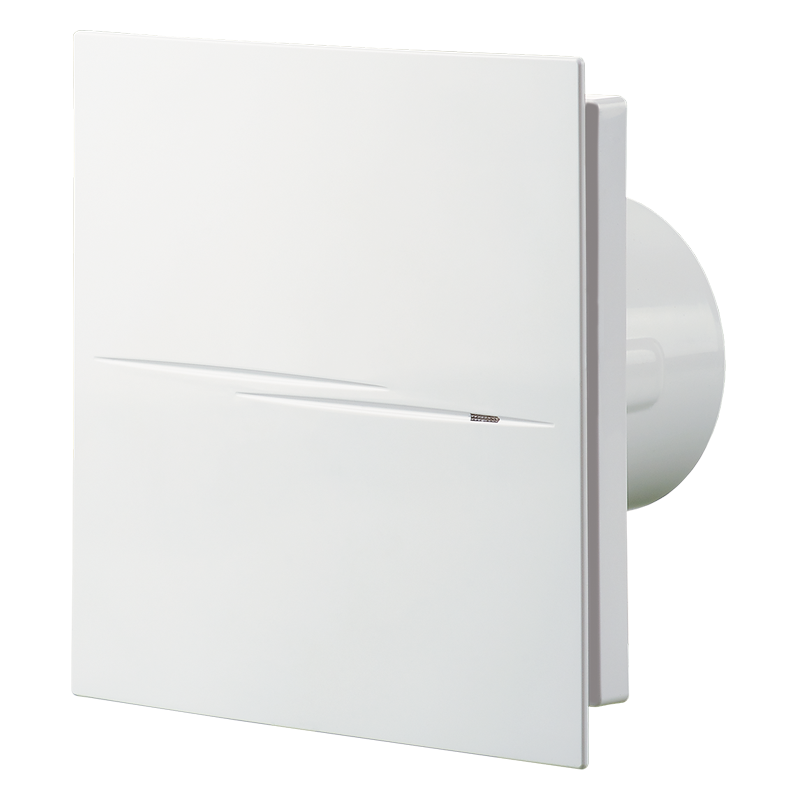

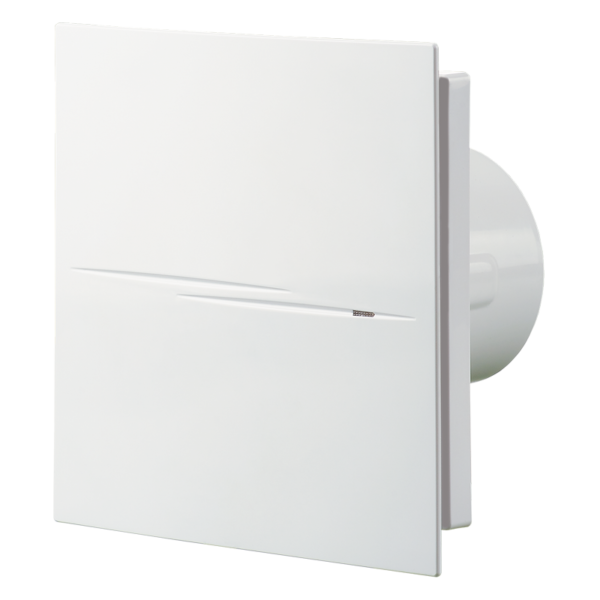

Quiet-Style is an axial domestic extract fan designed for rooms with normal or increased humidity: kitchen, bathroom and shower rooms etc. The series features a modern design, low-noise operation, durability, security, ease of use and high water ingress protection rating.

ADVANTAGES OF THE FAN

High productivity and low noise

• The minimum noise level combined with high performance is provided by using a special impeller of an aerodynamic shape and unique motor design equipped with a rubber anti-vibration connector.

Reliability

• The model is equipped with a motor on ball bearings with low energy consumption. The motor is equipped with overheating protection and is maintenance-free for all the motor service life. The electronic elements of the fan are covered with special airtight covers, which ensures the unit’s reliability and durability. The fan’s impeller and casing are made of durable high-quality UV-resistant plastic.

No back flow

• The specially designed back valve prevents heat losses and back indoor airflow when the fan is off.

Multipurpose use

• The fan is rated for both continuous and interval operation. The unit can be installed on the ceiling, walls, air ducts or air pits.

Ease of maintenance

• The fan can be easily cleaned from dust or dirt. The front panel is easily removable for washing.

Use

• Residential premises
• Offices
• Utility spaces with normal and increased humidity

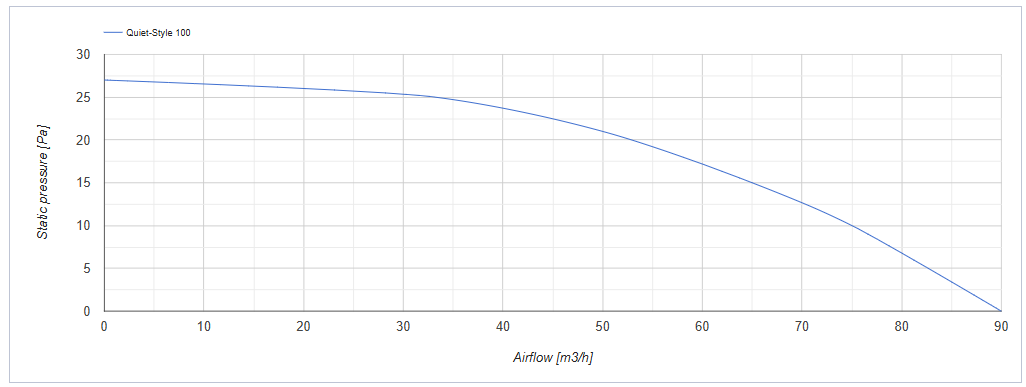

Lineup Vents Quiet-Style	Connected air duct size, mm	Rated power, W	Maximum airflow, m3/h	Sound pressure level LpA at 3 m, dB(A)	Pull cord	Humidity sensor	Timer
Vents Quiet-Style 100	100	7.5	90	26
