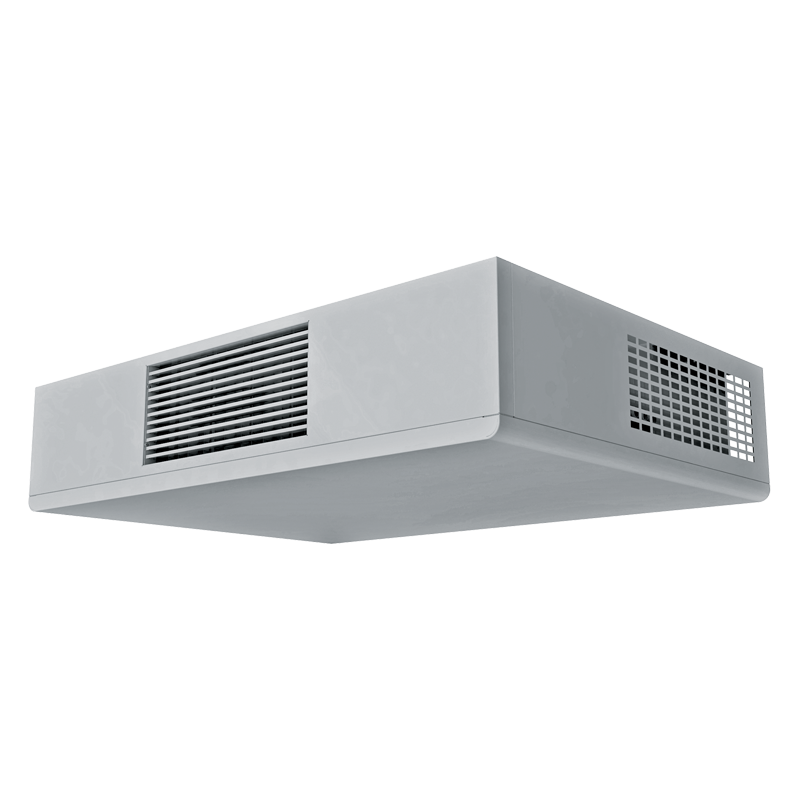

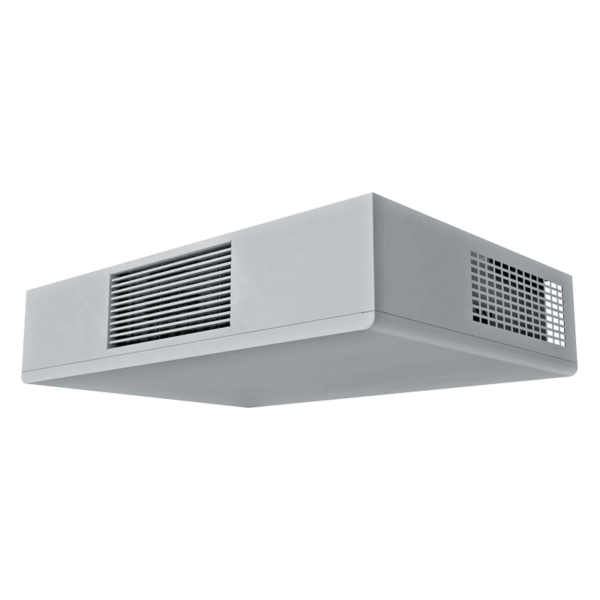

Series Vents Uni Max
Wall-mounted AHU with an enthalpy heat exchanger and an air flow of up to 200 m³/h
- Heat exchanger type: Counter flow
- Sound insulation
- Motor type: EC
- Bypass: Auto
- BMS protocol: ModBus
- Control: Smartphone
- Casing material: Galvanized steel
- Humidity sensor: Optional
- Enthalpy heat exchanger
- Reheater: Electric
| Lineup Vents Uni Max | Connected air duct size, mm | Rated power, W | Maximum airflow, m3/h | Control system | Reheater | BMS protocol |
|---|---|---|---|---|---|---|
 Vents Uni Max A14
|
125 | 58 | 160 | A14 |  |
ModBus |
|
Vents Uni Max ERV A14
|
125 | 58 | 160 | A14 | |
ModBus |
|
Vents Uni Max A21
|
125 | 58 | 160 | |
|
ModBus |
|
Vents Uni Max E A21
|
125 | 58 | 160 | |
Electric | ModBus |
|
Vents Uni Max ERV A21
|
125 | 58 | 160 | |
|
ModBus |
|
Vents Uni Max E ERV A21
|
125 | 58 | 160 | |
Electric | ModBus |
