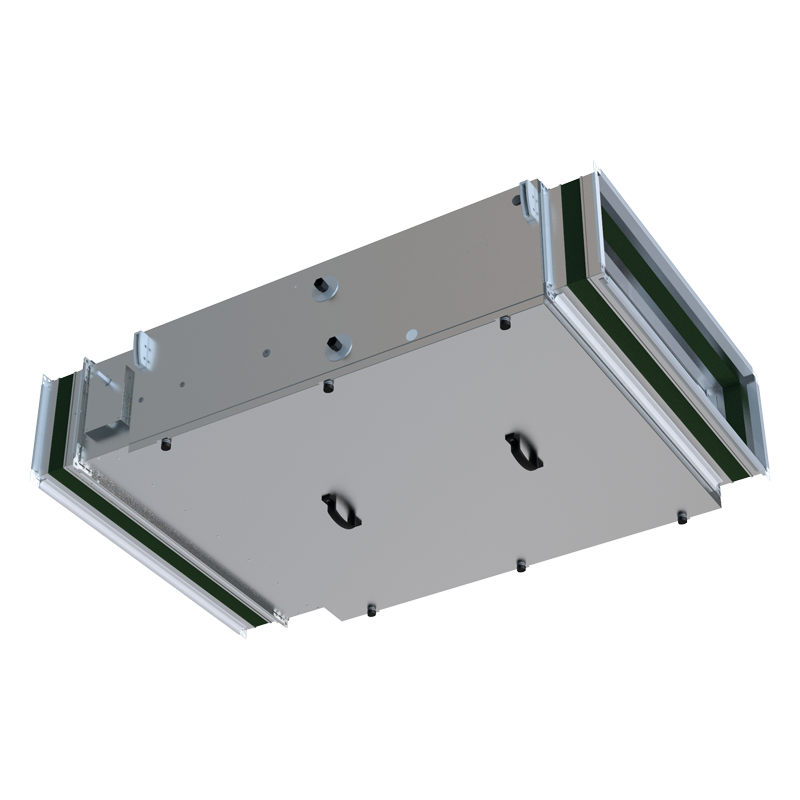

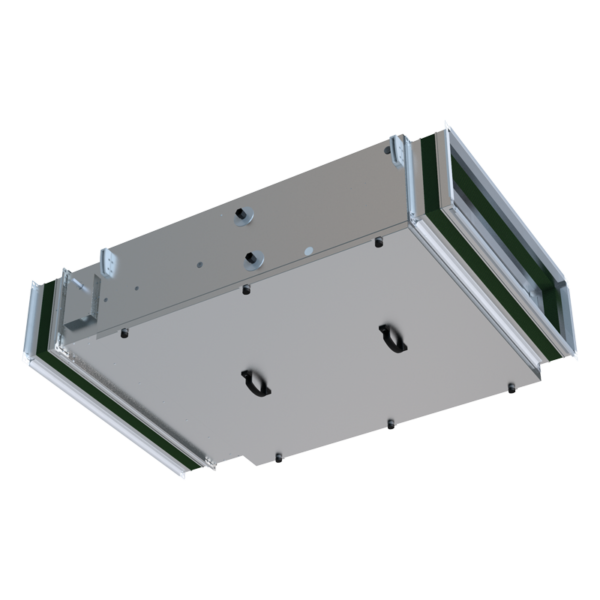

Series Vents UVU

Unidirectional ventilation units

The compact UVU unidirectional ventilation units with additional heating and cooling modules provide comfortable living conditions in any premises, such as logistics facilities or gyms.
Easy installation directly into the duct and the ability to combine sections allows achieving the required air parameters within an optimised time frame.

DESIGN

The panels of the casing are made of aluzinc (outer) and galvanized steel (inner), and are heat and sound insulated with 25 mm or 40 mm thick mineral wool depending on size. Maintenance is carried out from below through removable panels. Each unit size may comprise the following components to achieve the required air parameters:

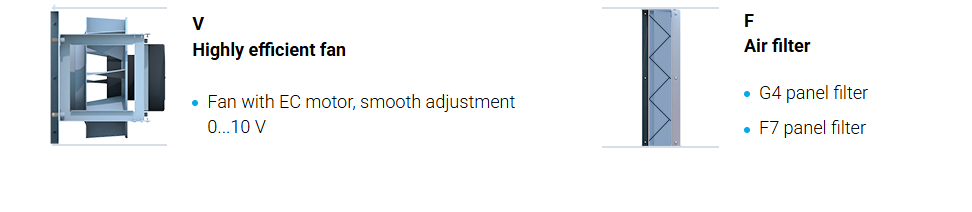

• V – high-efficiency fan
• F – air filter class G4, F7
• HW – water heater
• CW – water cooler
• CDX – freon cooler
• HE – electric heater

APPLICATION

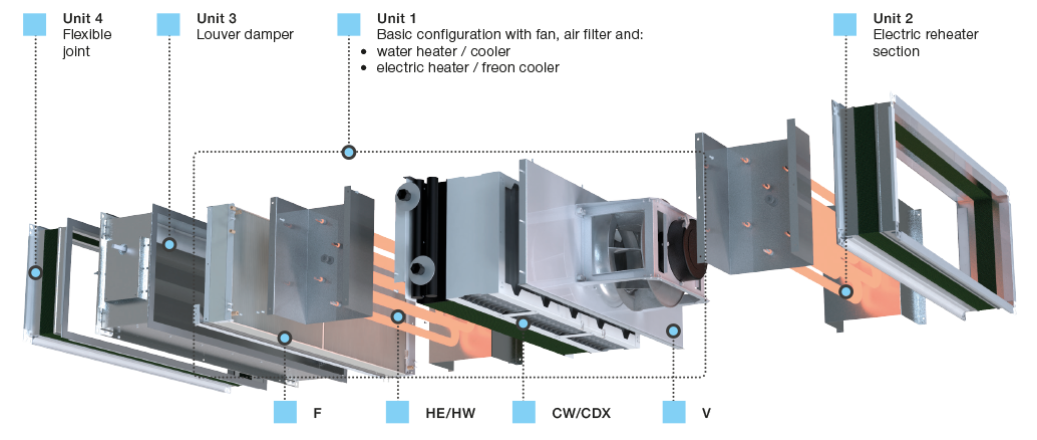

CONFIGURATIONS AND FUNCTIONAL UNITS

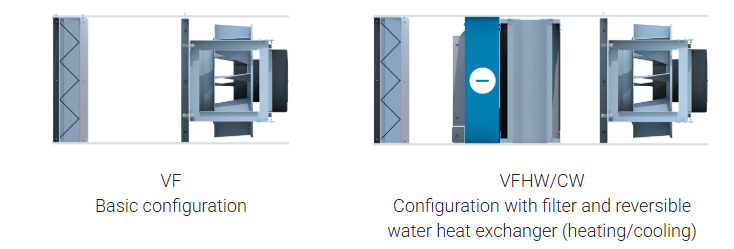

BASIC CONFIGURATION

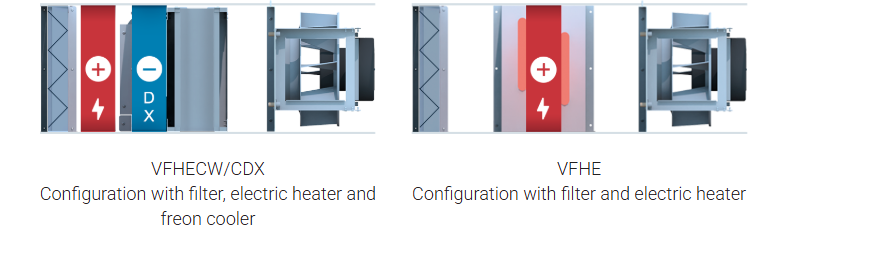

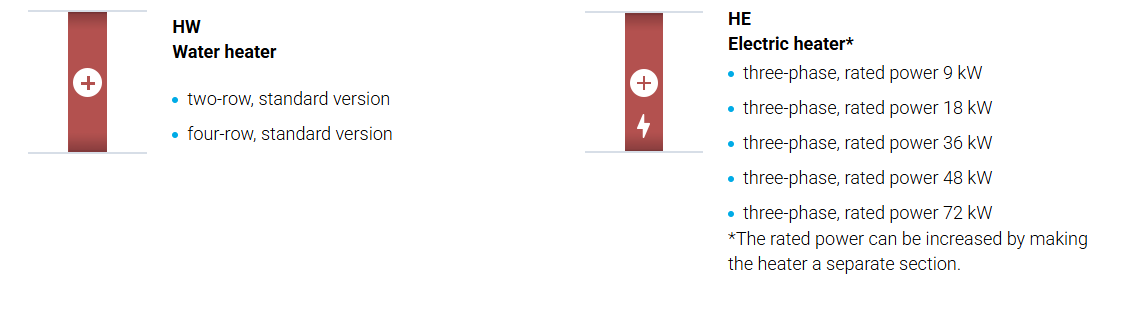

ADDITIONAL OPTIONS. HEATING

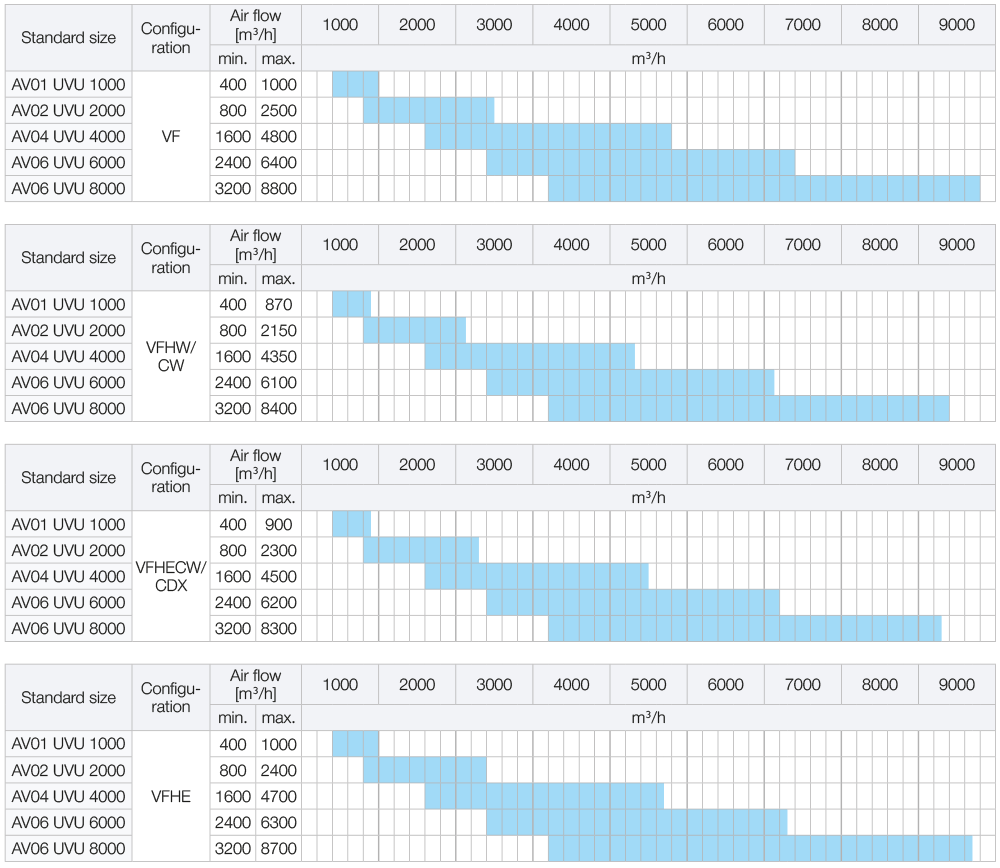

CONFIGURATIONS AND PERFORMANCE
