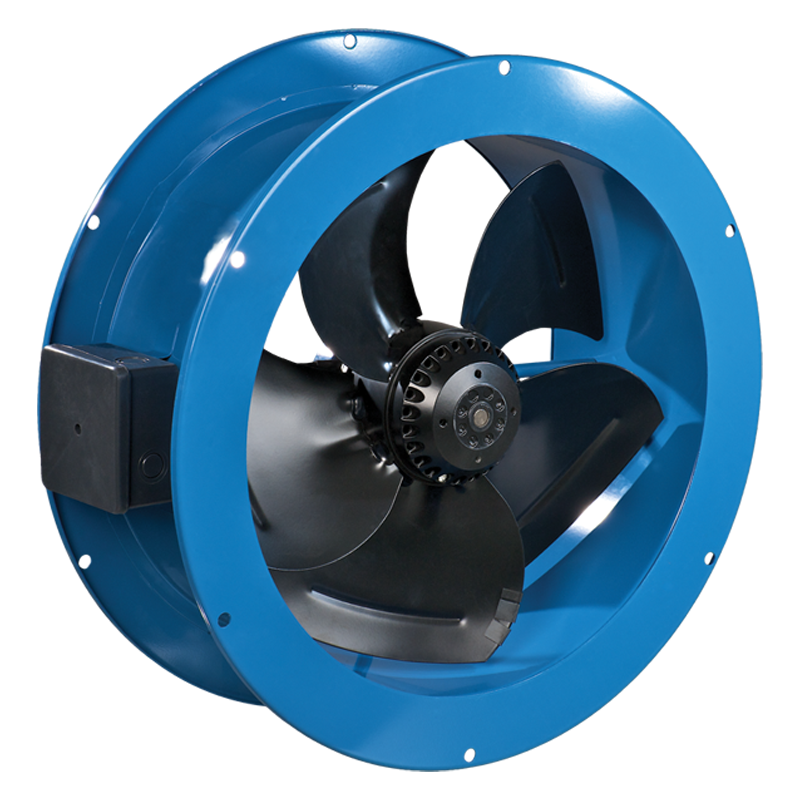

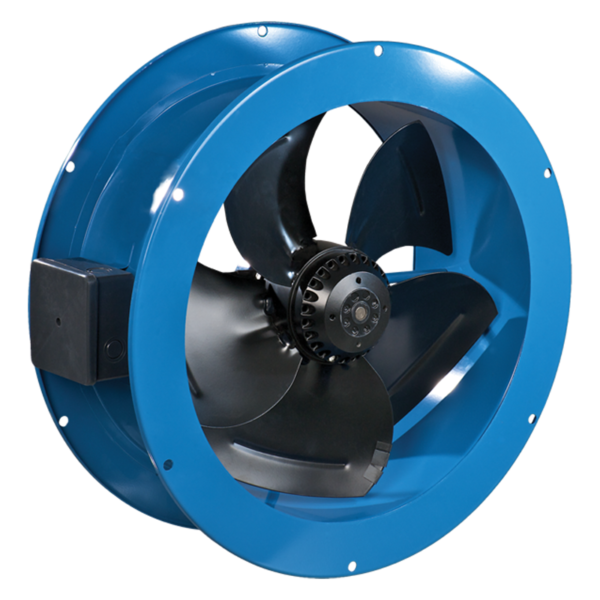

Series Vents VKF
Low pressure axial fans in the steel casing with for wall mounting
- Motor type: AC
- Impeller type: Axial
- Casing material: Polypropylene/Thermoplastic elastomer
| Lineup Vents VKF | Connected air duct size, mm | Rated power, W | Maximum airflow, m3/h |
|---|---|---|---|
 Vents VKF 2D 250
|
250 | 80 | 1060 |
|
Vents VKF 2D 300
|
300 | 145 | 2310 |
|
Vents VKF 4D 250
|
250 | 60 | 850 |
|
Vents VKF 4D 300
|
300 | 75 | 1310 |
|
Vents VKF 4D 350
|
350 | 140 | 2350 |
|
Vents VKF 4D 400
|
400 | 180 | 3740 |
|
Vents VKF 4D 450
|
450 | 250 | 5280 |
|
Vents VKF 4D 500
|
500 | 450 | 6570 |
|
Vents VKF 4D 550
|
550 | 750 | 9700 |
|
Vents VKF 4D 630
|
630 | 800 | 12200 |
|
Vents VKF 2E 200
|
200 | 55 | 860 |
|
Vents VKF 2E 250
|
250 | 80 | 1050 |
|
Vents VKF 2E 300
|
300 | 145 | 2230 |
|
Vents VKF 4E 250
|
250 | 50 | 800 |
|
Vents VKF 4E 300
|
300 | 75 | 1340 |
|
Vents VKF 4E 350
|
350 | 140 | 2500 |
|
Vents VKF 4E 400
|
400 | 180 | 3580 |
|
Vents VKF 4E 450
|
450 | 250 | 4680 |
|
Vents VKF 4E 500
|
500 | 420 | 7060 |
|
Vents VKF 4E 550
|
550 | 550 | 8800 |
|
Vents VKF 4E 630
|
630 | 750 | 11900 |
|
Vents VKF 6D 710
|
710 | 1150 | 15440 |
|
Vents VKF 6D 800
|
800 | 1850 | 25000 |
