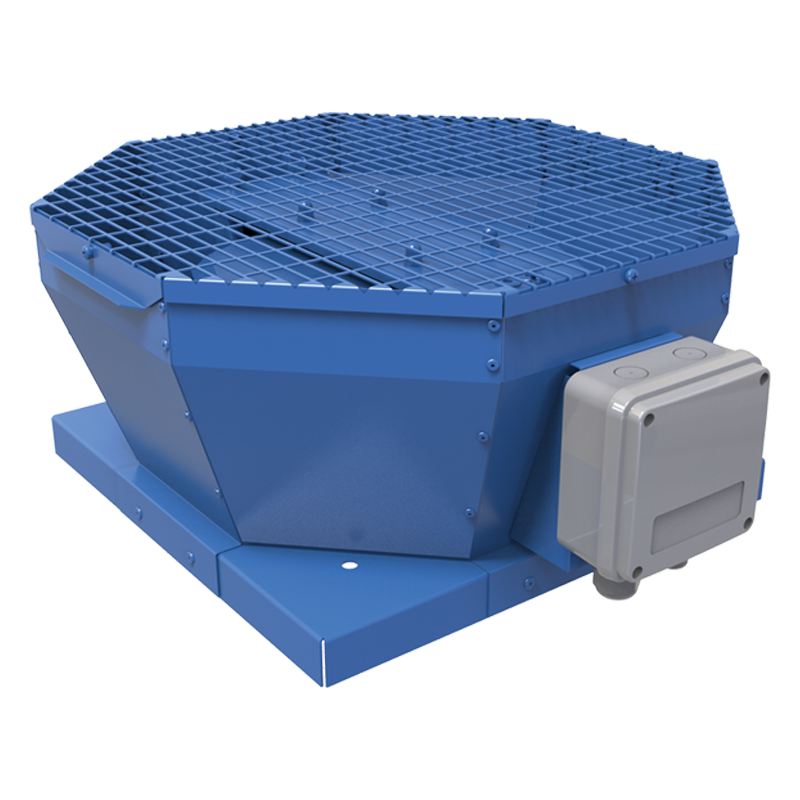

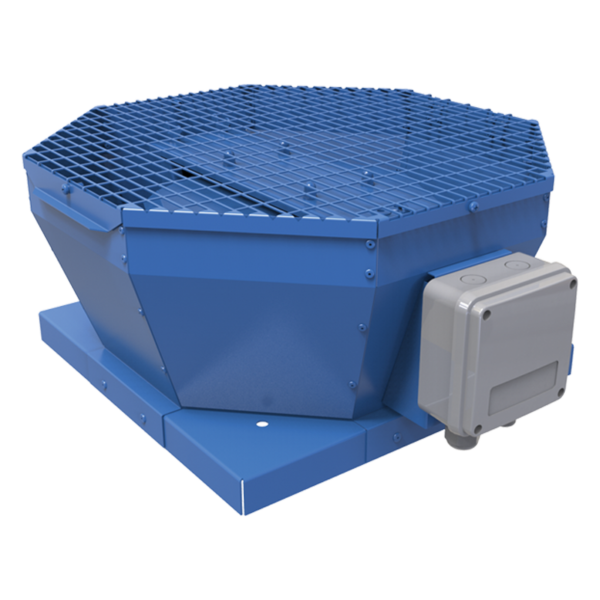

Series Vents VKV
Roof centrifugal fans with vertical air discharge
- Motor type: AC
- Impeller type: Centrifugal backward curved blades
- Casing material: Polypropylene/Thermoplastic elastomer
| Lineup Vents VKV | Rated power, W | Maximum airflow, m3/h |
|---|---|---|
 Vents VKVz 2E 190
|
69 | 610 |
|
Vents VKVz 2E 220
|
108 | 880 |
|
Vents VKVz 2E 225
|
123 | 915 |
|
Vents VKVz 2E 250
|
184 | 1450 |
|
Vents VKVz 2E 310
|
324 | 2150 |
|
Vents VKVz 4D 310
|
155 | 2300 |
|
Vents VKVz 4D 355
|
264 | 3290 |
|
Vents VKVz 4D 400
|
420 | 3950 |
|
Vents VKVz 4D 450
|
755 | 5920 |
|
Vents VKVz 4D 500
|
1527 | 8435 |
|
Vents VKVz 4D 560
|
1970 | 13560 |
|
Vents VKVz 4E 225
|
49 | 738 |
|
Vents VKVz 4E 250
|
48 | 820 |
|
Vents VKVz 4E 280
|
125 | 1490 |
|
Vents VKVz 4E 310
|
141 | 2265 |
|
Vents VKVz 4E 355
|
219 | 2480 |
|
Vents VKVz 4E 400
|
457 | 3950 |
|
Vents VKVz 4E 450
|
749 | 6180 |
|
Vents VKVz 6D 500
|
440 | 6000 |
|
Vents VKVz 6D 560
|
696 | 9630 |
|
Vents VKVz 6D 630
|
1110 | 12640 |
|
Vents VKVz 6D 710
|
2583 | 17010 |
|
Vents VKVz 6E 400
|
184 | 2740 |
|
Vents VKVz 6E 450
|
268 | 4380 |
|
Vents VKVz 6E 500
|
407 | 5680 |
|
Vents VKVz 6E 560
|
613 | 9560 |
 Vents VKV 2E 190
|
69 | 610 |
|
Vents VKV 2E 220
|
108 | 880 |
|
Vents VKV 2E 225
|
123 | 915 |
|
Vents VKV 2E 250
|
184 | 1450 |
|
Vents VKV 2E 310
|
324 | 2150 |
|
Vents VKV 4D 310
|
155 | 2300 |
|
Vents VKV 4D 355
|
264 | 3290 |
|
Vents VKV 4D 400
|
420 | 3950 |
|
Vents VKV 4D 450
|
755 | 5920 |
|
Vents VKV 4D 500
|
1527 | 8435 |
|
Vents VKV 4D 560
|
1970 | 13560 |
|
Vents VKV 4E 225
|
49 | 738 |
|
Vents VKV 4E 250
|
48 | 820 |
|
Vents VKV 4E 280
|
125 | 1490 |
|
Vents VKV 4E 310
|
141 | 2265 |
|
Vents VKV 4E 355
|
219 | 2480 |
|
Vents VKV 4E 400
|
457 | 3950 |
|
Vents VKV 4E 450
|
749 | 6180 |
|
Vents VKV 6D 500
|
440 | 6000 |
|
Vents VKV 6D 560
|
696 | 9630 |
|
Vents VKV 6D 630
|
1110 | 12640 |
|
Vents VKV 6D 710
|
2583 | 17010 |
|
Vents VKV 6E 400
|
184 | 2740 |
|
Vents VKV 6E 450
|
268 | 4380 |
|
Vents VKV 6E 500
|
407 | 5680 |
|
Vents VKV 6E 560
|
613 | 9560 |
