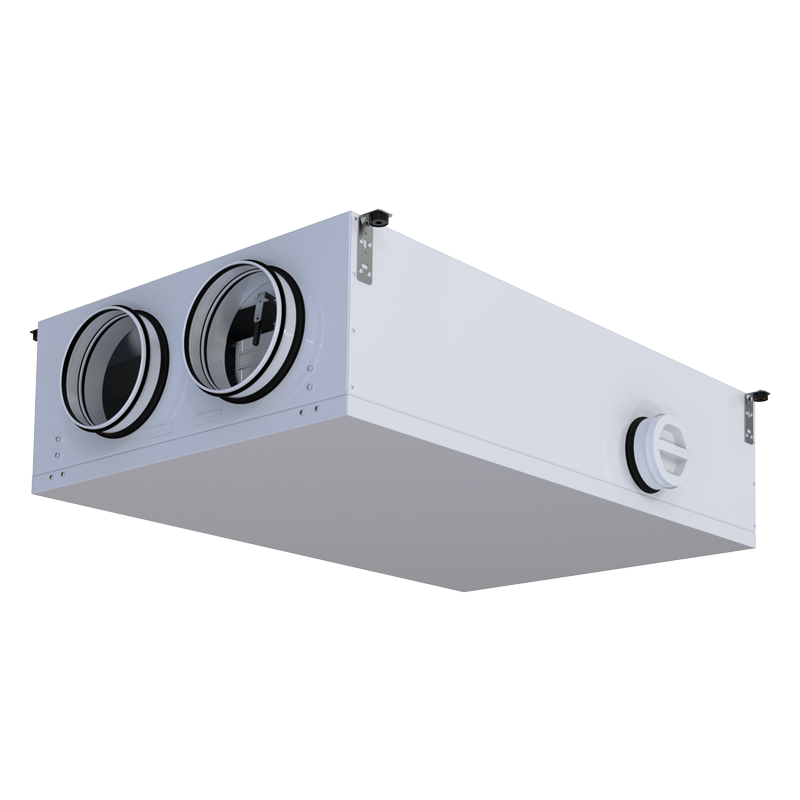

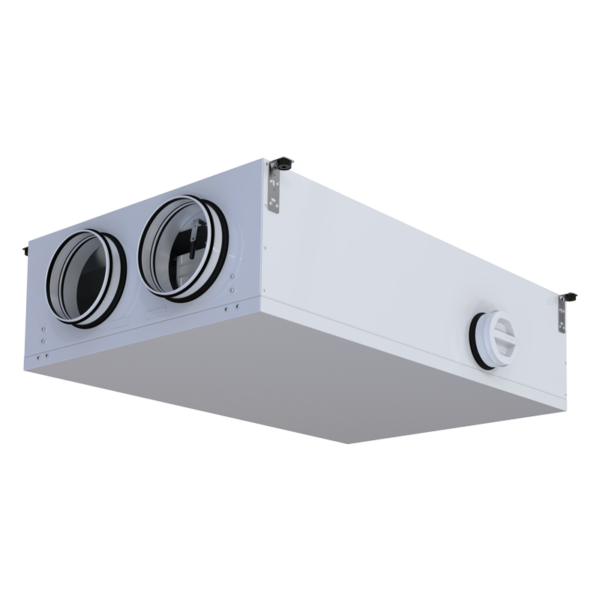

Series Vents VUTR P EC
Suspended air handling units with a sorption rotary heat exchanger
- Heat exchanger type: Sorption rotary
- Sound insulation
- Motor type: EC
- Bypass: Auto
- BMS protocol: ModBus
- Control: Smartphone
- Casing material: Coated steel
- Humidity sensor: Optional
- Reheater: Built-in
- Enthalpy heat exchanger
| Lineup Vents VUTR P EC | Connected air duct size, mm | Speed | Maximum airflow, m3/h | Sound pressure level LpA at 3 m, dB(A) | Heat recovery efficiency, max, % | Extract filter | Supply filter | Service side | Control system | BMS protocol | Power of electrical reheater, W | Reheater |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vents VUTR 351 P EC R A21 |
200 | 1 | 513 | 31 | 88 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | A21 | ModBus | ||
|
Vents VUTR 351 PE EC R A21 |
200 | 1 | 513 | 31 | 88 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | А21 | ModBus | 1200 | Built-in |
|
Vents VUER 351 P EC R A21 |
200 | 1 | 513 | 31 | 82 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | А21 | ModBus | ||
|
Vents VUER 351 PE EC R A21 |
200 | 1 | 513 | 31 | 82 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | А21 | ModBus | 1200 | Built-in |
|
Vents VUTR 651 P EC R A21 |
250 | 1 | 798 | 31 | 85 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | A21 | ModBus | ||
|
Vents VUTR 651 PE EC R A21 |
250 | 1 | 798 | 31 | 85 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | А21 | ModBus | 1400 | Built-in |
|
Vents VUER 651 P EC R A21 |
250 | 1 | 798 | 31 | 84 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | А21 | ModBus | ||
|
Vents VUER 651 PE EC R A21 |
250 | 1 | 798 | 31 | 84 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | A21 | ModBus | 1400 | Built-in |
VUTR (VUER) 651 P(E) EC A21
VUTR VUER 351 PE EC
