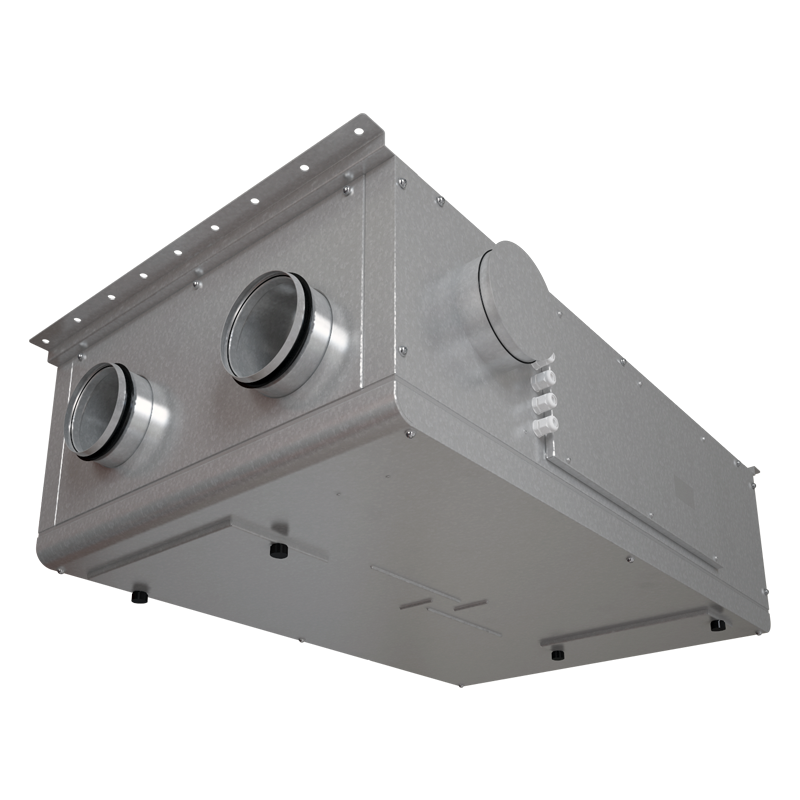

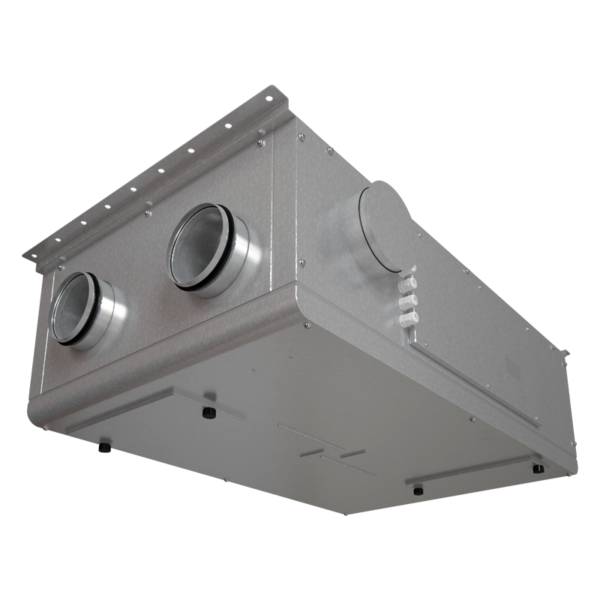

Series Vents VUTR PE EC
Suspended air handling units with a sorption rotary heat exchanger
- Heat exchanger type: Rotary
- Sound insulation
- Motor type: EC
- Reheater: Electric
- BMS protocol: ModBus
- Control: Smartphone
- Casing material: Galvanized steel
- Humidity sensor: Optional
| Lineup Vents VUTR PE EC | Connected air duct size, mm | Speed | Power of electrical reheater, W | Maximum airflow, m3/h | Sound pressure level LpA at 3 m, dB(A) | Heat recovery efficiency, max, % | Extract filter | Supply filter | Service side | Control system | Reheater | BMS protocol |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vents VUTR 250 P2E EC R A21 |
160 | 1 | 700 | 300 | 23 | 87 | G4 | G4 | Right | A21 | Electric | ModBus |
 Vents VUTR 250 PE EC R A21 |
160 | 1 | 700 | 310 | 21 | 87 | G4 | G4 | Right | A21 | Electric | ModBus |
|
Vents VUTR 350 P2E EC R A21 |
160 | 1 | 1400 | 400 | 33 | 87 | G4 | G4 | Right | A21 | Electric | ModBus |
|
Vents VUTR 350 PE EC R A21 |
160 | 1 | 1400 | 430 | 31 | 87 | G4 | G4 | Right | A21 | Electric | ModBus |
|
Vents VUTR 650 PE EC R A21 |
200 | 1 | 2800 | 710 | 36 | 87 | G4 | G4 | Right | A21 | Electric | ModBus |
VUTR PE EC
