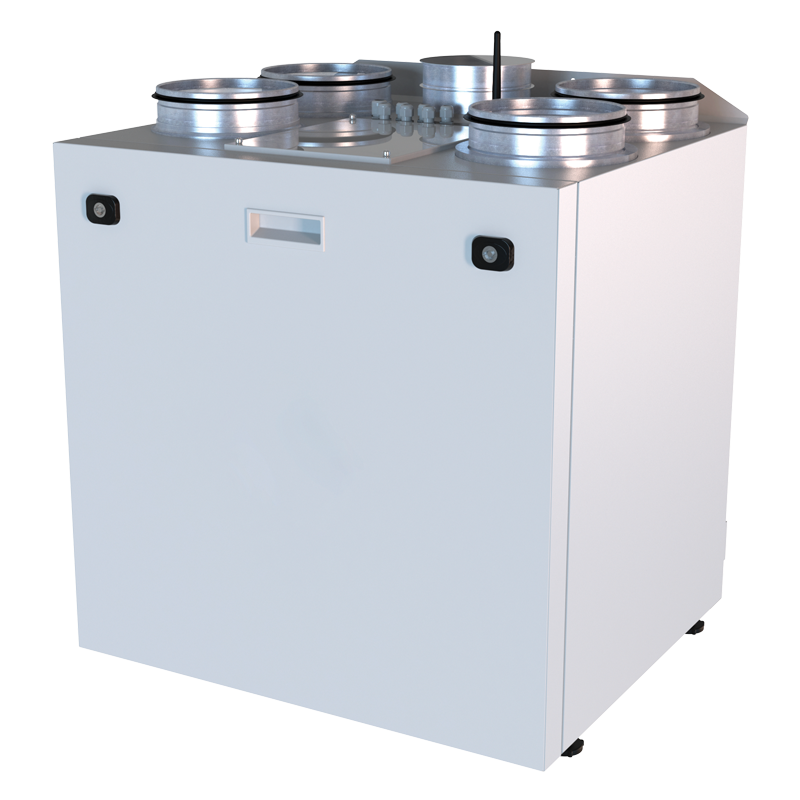

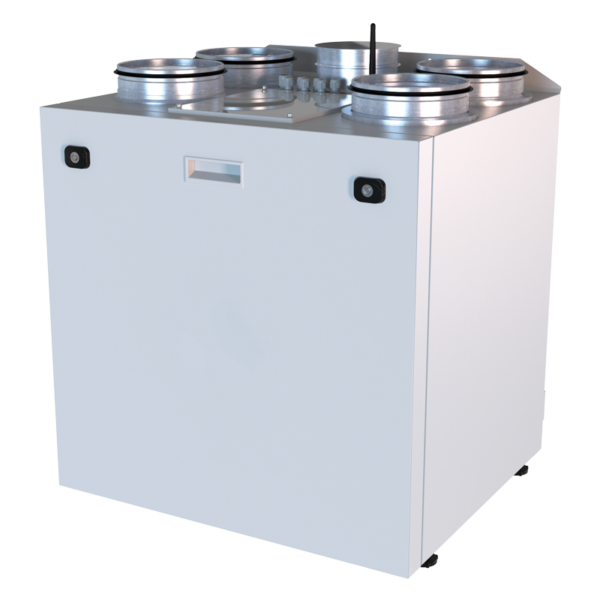

Series Vents VUTR V EC
Vertical air handling units with a sorption rotary heat exchanger
- Heat exchanger type: Sorption rotary
- Sound insulation
- Motor type: EC
- BMS protocol: ModBus
- Control: Smartphone
- Casing material: Coated steel
- Humidity sensor: Optional
- Reheater: Built-in
| Lineup Vents VUTR V EC | Connected air duct size, mm | Maximum airflow, m3/h | Sound pressure level LpA at 3 m, dB(A) | Heat recovery efficiency, max, % | Extract filter | Supply filter | Service side | Control system | BMS protocol | Power of electrical reheater, W | Reheater |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Vents VUTR 281 V EC R A21 |
160 | 382 | 26 | 89 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | А21 | ModBus | ||
|
Vents VUER 281 V EC R A21 |
160 | 382 | 26 | 86 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | А21 | ModBus | ||
|
Vents VUTR 281 VE EC R A21 |
160 | 382 | 26 | 89 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | А21 | ModBus | 1200 | Built-in |
|
Vents VUER 281 VE EC R A21 |
160 | 382 | 26 | 86 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | А21 | ModBus | 1200 | Built-in |
|
Vents VUTR 401 V EC R A21 |
160 | 447 | 28 | 89 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | A21 | ModBus | ||
|
Vents VUER 401 V EC R A21 |
160 | 447 | 28 | 85 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | A21 | ModBus | ||
|
Vents VUTR 401 VE EC R A21 |
160 | 447 | 28 | 89 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | A21 | ModBus | 1200 | Built-in |
|
Vents VUER 401 VE EC R A21 |
160 | 447 | 28 | 85 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | A21 | ModBus | 1200 | Built-in |
|
Vents VUTR 601 V EC R A21 |
200 | 747 | 29 | 87 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | A21 | ModBus | ||
|
Vents VUER 601 V EC R A21 |
200 | 747 | 29 | 86 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | A21 | ModBus | ||
|
Vents VUTR 601 VE EC R A21 |
200 | 747 | 29 | 87 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | А21 | ModBus | 1400 | Built-in |
|
Vents VUER 601 VE EC R A21 |
200 | 747 | 29 | 86 | G4 / Coarse > 60% | G4 / Coarse > 60% (option F7 / ePM1 60%) | Right | A21 | ModBus |
VUTR 281 / 401 V EC
VUTR 601 V EC
